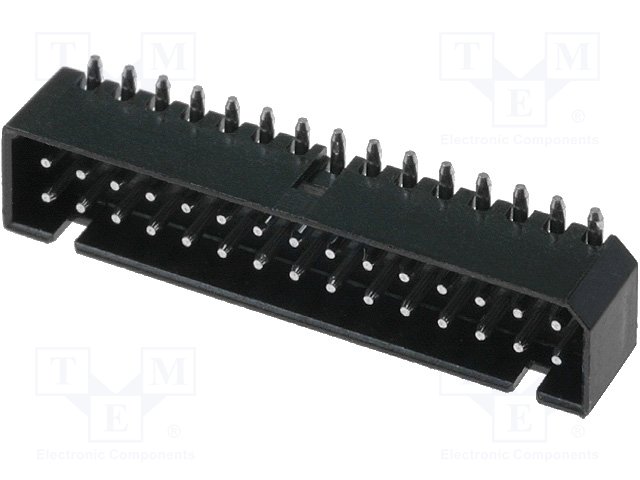

9-176140-0

Specifications

Pozisyon Sayısı

30

Number Of Conductors

ONE

Max Voltage Rating Ac

50V

Total Number Of Contacts

30

Max Voltage Rating Dc

5.05kV

HTS Kodu

8536.69.40.40

Montaj

Surface Mount

RoHS Durumu

RoHS Compliant

Uzunluk

20.2mm

Çalışma Sıcaklığı

-30°C~105°C

Iec Conformance

NO

Mating Contact Pitch

0.049 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flammability Rating

UL94 V-0

Body Breadth

0.158 inch

Fastening Type

Push-Pull

Insulation Resistance

500000000Ohm

Ambalaj

Bulk

Number Of Pcb Rows

2

Pcb Contact Pattern

RECTANGULAR

Row Spacing Mating

0.049 (1.25mm)

Montaj Tipi

Surface Mount

Insulation Height

0.156 3.96mm

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

Style

Board to Board

Insulation Materials

Polyphenylene Sulfide (PPS)

Additional Feature

LOOSE PIECE

Yayın Yılı

2010

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Option

GENERAL PURPOSE

Dielectric Withstanding Voltage

500VDC V

Reference Standard

UL

Din Conformance

NO

Filter Feature

NO

Depth

4mm

Contact Resistance

20mOhm

Terminal

Solder

Number Of Positions Loaded

All
