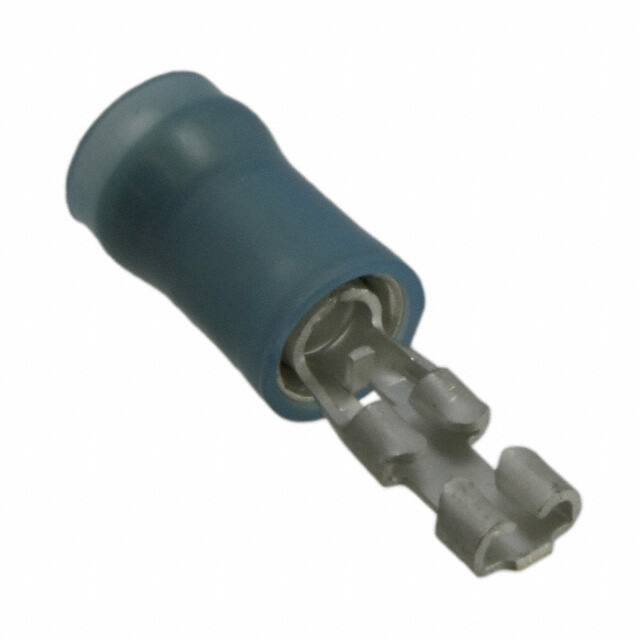

8-640929-1

Specifications

Wire Gauge Min

16 AWG

Te Internal Description

RECEPT,PIDG FASTON 16-14 110

Parça Durumu

Active

Ambalaj

Bulk

Onay Kuruluşu

CSA

Contact Plating

Tin

Length Tab

0.250 6.35mm

Montaj

Free Hanging

Voltage Rated Ac

300V

Product Length

20.82 mm

Quick Disconnect Terminal Typeu2009

Receptacle

Terminal Type

Standard

Mating Tab Width

2.794mm

Voltage Rating

300 V

Insulation

Non-Mating End Insulated

Wire Gauge

14-16 AWG

Genişlik

4.06 mm

Tradename

FASTON

Insulation Diameter

0.170 (4.32mm)

Material

Brass

Fabrika Tedarik Süresi

12 Weeks

Terminal And Terminal Block Type

WIRE TERMINAL

Tab Size

1.41 mm²

Rad Hardened

No

Flammability Rating

UL94 V-2

Mounting Angle

Straight

Te Internal

8-640929-1

Fabrika Paket Adedi

100

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Material

Brass

Wire Size

16 to 14, 16 AWG

Length Overall

0.800 20.32mm

Insulator Material

Nylon (Polyamide)

Birim Ağırlık

3.520024 oz

Body Material

Brass

ECCN Kodu

EAR99

Seri

Faston, PIDG

Uzunluk

20.3mm

Sealable

No

RoHS Durumu

RoHS Compliant
