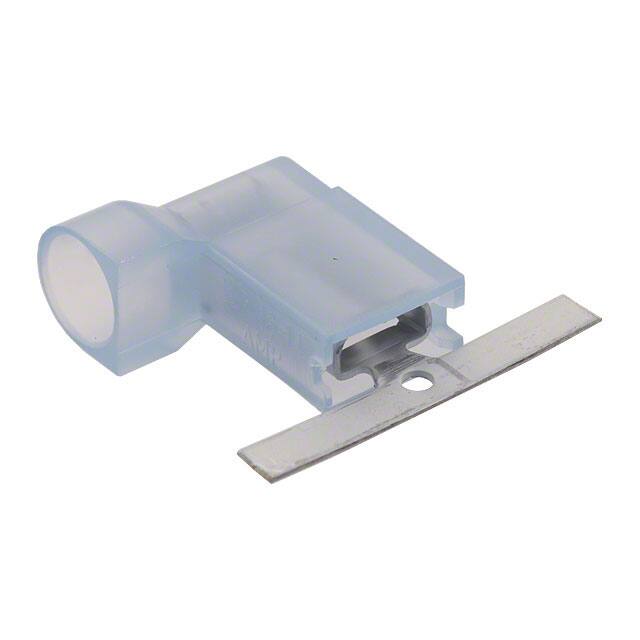

8-520133-1

Specifications

Wire Gauge Max

16 AWG

Orientation

Right Angle

ECCN Kodu

EAR99

Wire Cross Section

2 mm2

Seri

Ultra-Fast

Uzunluk

14.73mm

Renk

Blue

Flammability Rating

UL94 V-2

Terminal And Terminal Block Type

WIRE TERMINAL

Elv

Compliant

Kurşunsuz

Lead Free

Contact Materials

Brass

Contact Finish

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Crimp

Connector Type

Receptacle

Terminal Type

Angled - 90°, Flag

Voltage Rated Ac

300V

Wire Gauge

14-16 AWG

Insulation

Fully Insulated

Insulation Diameter

0.185 (4.70mm)

HTS Kodu

8536.90.40.00

Yayın Yılı

2006

Width Tab

0.250 6.35mm

Fabrika Tedarik Süresi

7 Weeks

Wire Gauge Min

14 AWG

RoHS Durumu

RoHS Compliant

Montaj Tipi

Free Hanging (In-Line), Right Angle

Tab Thickness

0.032 0.81mm

Ambalaj

Bulk

Insulation Materials

Nylon

Parça Durumu

Obsolete

Gender

Female

Montaj

Free Hanging

REACH Uyumluluk Kodu

unknown
