Specifications
- Insulation Height
- 0.157 4.00mm
- Montaj
- Through Hole
- Elv
- Compliant
- Yayın Yılı
- 2003
- Kurşunsuz Kodu
- yes
- Fastening Type
- Push-Pull
- Housing Color
- Red
- Montaj Tipi
- Through Hole
- Ambalaj
- Tape & Box (TB)
- Mating Connector Lock
- Without
- Contact Gender
- FEMALE
- Genişlik
- 14.7mm
- Applications
- Automotive, General Purpose
- Voltage Rated Dc
- 100V
- Terminal
- Kinked Pin, Solder
- Çalışma Sıcaklığı
- -40°C~105°C
- Pozisyon Sayısı
- 10
- Lifecycle Status
- ACTIVE (Last Updated: 2 days ago)
- Working Voltage
- 100V
- Contact Materials
- Phosphor Bronze
- Lead Length
- 3.0988mm
- Lead Pitch
- 1.27mm
- Row Spacing Mating
- 0.100 (2.54mm)
- Parça Durumu
- Active
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Housing Material
- Polyester
- Additional Feature
- POLARIZED, TOP ENTRY
- Insulation Materials
- Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Pitch Mating
- 0.100 2.54mm
- Operating Supply Voltage
- 100V
- Contact Finish Mating
- Tin
- Contact Length Post
- 0.122 3.10mm
- Contact Current Rating
- 1.5A
- Plating Thickness
- 5 nm
- Sıra Sayısı
- 2
- Orientation
- Vertical
- Iec Conformance
- NO
- Filter Feature
- NO

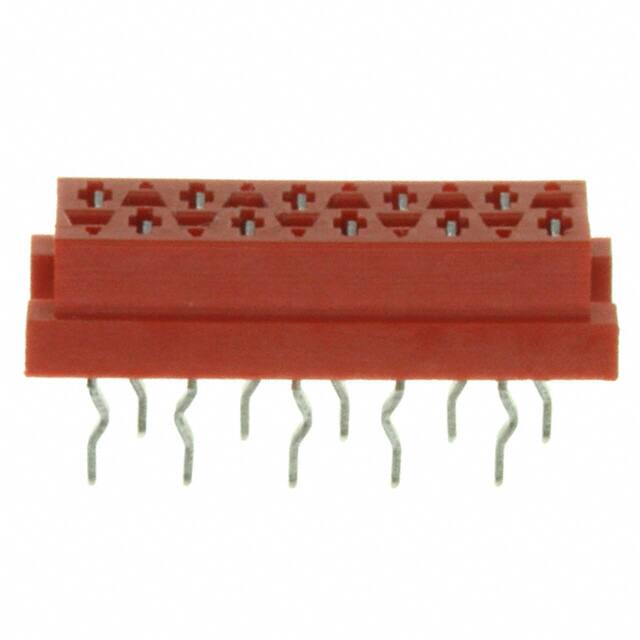

- Connector Type
- Receptacle
- Seri
- Micro-MaTch
