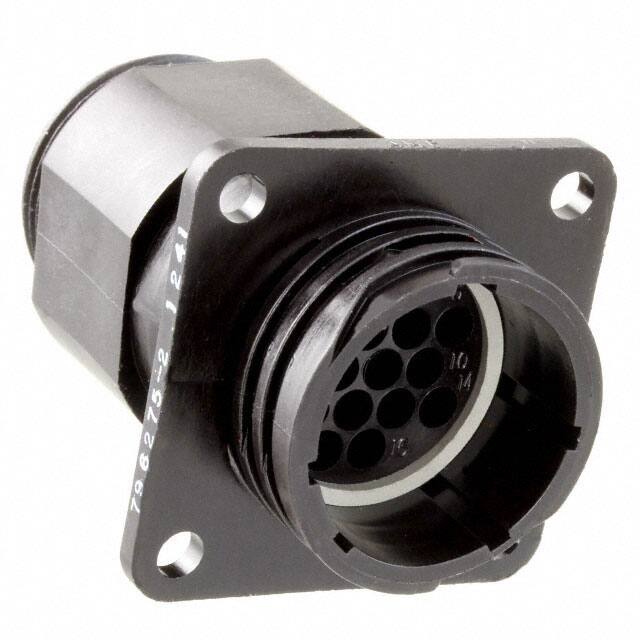

796275-2

Specifications

Number Of Positionsu2009

16

Sealableu2009

Yes

Seri

CPC Series 1

Connector Systemu2009

Wire-to-Wire

Note

Contacts Not Included

Insulation Diameter

2.032 mm

Montaj Tipi

Panel Mount

Orientation

Keyed

Elv

Compliant

Housing Material

Nylon

Parça Durumu

Active

Environmental Characteristics

CORROSION RESISTANT

Connector Product Typeu2009

Housing

Empty Shell

YES

Mil Conformance

NO

Çalışma Sıcaklığı

-55°C~105°C

Depth

36.45mm

Mating Retention

With

Filter Feature

NO

Yayın Yılı

2005

Shell Size Insert

17-16

Gender

Receptacle

Fabrika Tedarik Süresi

13 Weeks

Te Internal

796275-2

Contact Type

Crimp

Flammability Rating

UL94 V-0

Fastening Type

Threaded

Max Voltage Rating Ac

600V

Operating Supply Voltage

600V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Backshell

Tip

For Male Pins

Number Of Ports

1

Ratings

Dust Tight, IP67, Waterproof

Kurşunsuz

Lead Free

Din Conformance

NO

Operating Voltageu2009vdc

600

Sealable

Yes

Ambalaj

Bulk

Shielding

Unshielded
