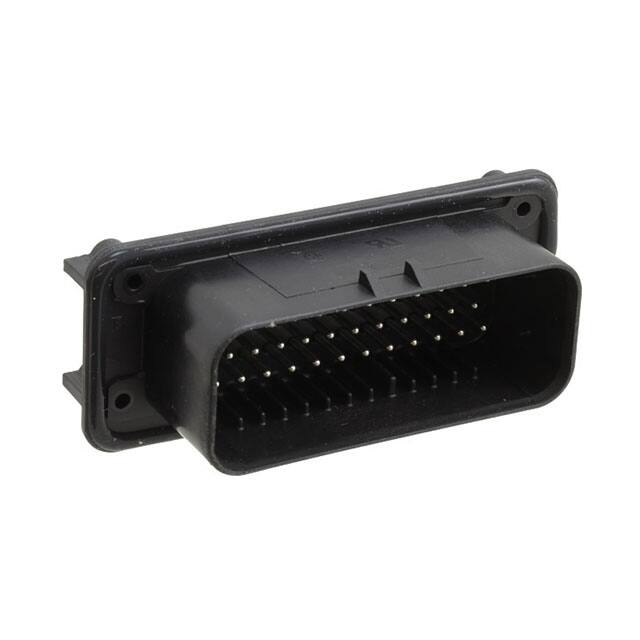

776163-1

Specifications

Number Of Positions Loaded

All

Number Of Signal Positions

35

Connector Type

Header

Fastening Type

Locking Ramp

Sıra Sayısı

3

Mixed Contacts

NO

Mil Conformance

NO

Reference Standard

UL

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Iec Conformance

NO

Number Of Pcb Rows

3

Uzunluk

76.962mm

Yayın Yılı

2010

Lifecycle Status

ACTIVE (Last Updated: 1 day ago)

Additional Feature

POLARIZED

Pitch Mating

0.157 4.00mm

Housing Material

Thermoplastic

Row Spacing Mating

0.157 (4.00mm)

Body Breadth

1.26 inch

Elv

Compliant

Özellikler

Board Guide, Sealed

Orientation

Right Angle

Operating Supply Voltage

250V

Akım Değeri

17A

Montaj Tipi

Panel Mount, Through Hole, Right Angle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

8 Weeks

Circuit Applications

Power

Insulation

Insulated

Nominal Gerilim

250VAC

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Çalışma Sıcaklığı

-40°C~105°C

Gender

Male

Genişlik

37.9mm

Applications

Automotive, Industrial

Style

Board to Cable/Wire

Total Number Of Contacts

35

Parça Durumu

Active

Flammability Rating

UL94 V-0
