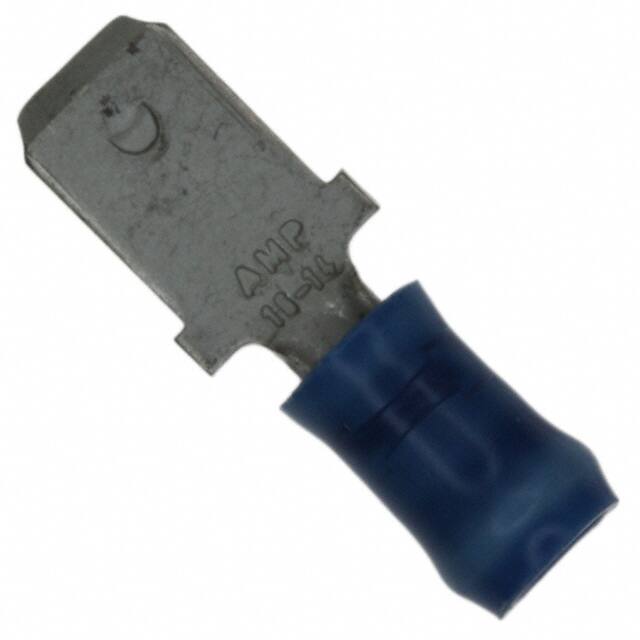

66024-2

Specifications

Insulation Diameter

0.115 ~ 0.170 (2.92mm ~ 4.32mm)

Elv

Compliant

Wire Gauge Max

14 AWG

ECCN Kodu

EAR99

Montaj Tipi

Free Hanging (In-Line)

Terminal And Terminal Block Type

TAB TERMINAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Plating

Tin

Insulated Wire Support

No

Ambalaj

Bulk

Voltage Rated Ac

300V

Length Overall

0.991 25.17mm

Width Tab

0.250 6.35mm

Orientation

Straight

Montaj

Free Hanging

Lifecycle Status

ACTIVE (Last Updated: 5 days ago)

Uzunluk

25.1714mm

Wire Cross Section

2 mm2

Wire Gauge

14-16 AWG

HTS Kodu

8536.90.40.00

Tab Thickness

0.032 0.81mm

Depth

7.87mm

Seri

PIDG

Terminal Type

Standard

Kurşunsuz

Not Applicable

Terminal

Crimp

Insulation Materials

PVC

Renk

Blue

Yayın Yılı

2002

Parça Durumu

Active

Contact Materials

Copper

RoHS Durumu

RoHS Compliant

Insulation

Non-Mating End Insulated

Wire Gauge Min

16 AWG

Mating Tab Width

6.35mm

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

12 Weeks

Gender

Male
