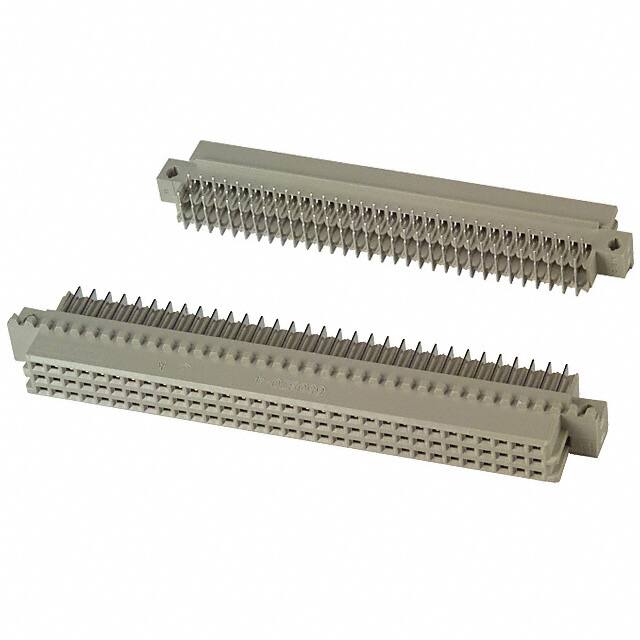

650870-4

Specifications

Uzunluk

93.87mm

Material Flammability Rating

UL94 V-0

Dielectric Withstanding Voltage

1000VAC V

Termination Post Length

3.3mm

Max Voltage Rating Ac

250V

Montaj

Through Hole

Pitch

0.100 2.54mm

Contact Finish

Gold

Seri

Eurocard

Insulation Resistance

1000000000Ohm

Elv

Compliant

Pcb Mounting Orientation

Right Angle

Contact Finish Thickness

30.0μin 0.76μm

Row Spacing

2.54 mm

Contact Materials

Bronze

Number Of Columns

32

Contact Resistance

15mOhm

Housing Material

Polyester

Montaj Tipi

Through Hole, Right Angle

Iec Conformance

YES

Terminal

Solder

Level Class

2

Yükseklik

10.49mm

Material Insulation

Polyester, Glass Filled

Total Number Of Contacts

64

Lead Length

2.79mm

Kurşunsuz

Contains Lead

Reference Standard

UL

Ambalaj

Bulk

Ul Flammability Code

94V-0

Number Of Power Positions

64

Connector Type

Receptacle, Female Sockets

Renk

Grey

Lead Pitch

2.54mm

Gender

Female

Parça Durumu

Active

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Number Of Pcb Rows

2

Make First Break Last

No

Fabrika Tedarik Süresi

25 Weeks
