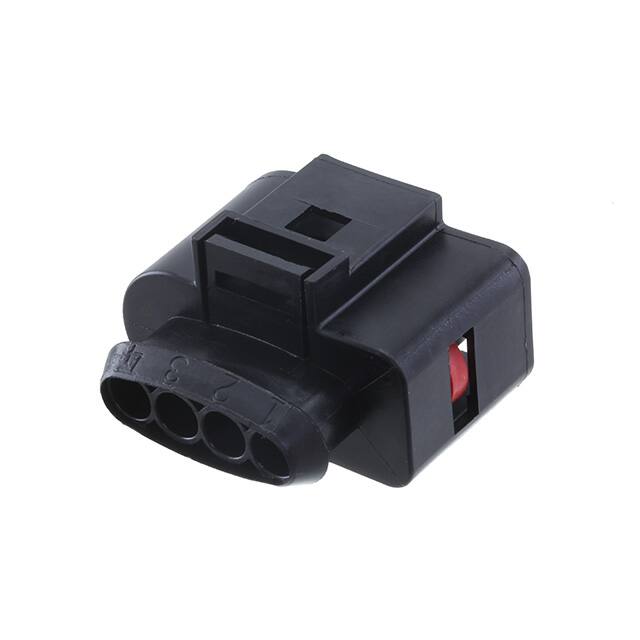

638245-1

Specifications

Connector Type

COMBINATION LINE CONNECTOR

Mating Tab Widthu2009

2.8u2009mmu2009[u2009.11u2009inu2009]

Depth

33mm

Orientation

Straight

Elv

Compliant

Flammability Rating

UL94 HB

Parça Durumu

Active

Te Internal Description

RECEPTACLE ASSY,4P SEALED,JPT

Housing Material

Polybutylene

Ambalaj

Bulk

Pitch

6mm

Centerline Pitchu2009

6u2009mmu2009[u2009.236u2009inu2009]

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Material

PBT

Te Internal

638245-1

Number Of Positionsu2009

4

Gender

Receptacle

ECCN Kodu

EAR99

Serviceable

Yes

Circuit Applications

Signal

Sıra Sayısı

1

Fabrika Tedarik Süresi

4 Weeks

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Hybrid Connector

No

Yayın Yılı

2008

Genişlik

22.7mm

Renk

Black

Number Of Contacts

4

Uzunluk

13.7mm

RoHS Durumu

RoHS Compliant

Mating Tab Width

2.794mm

Maks. Çalışma Sıcaklığı

125°C

Connector Systemu2009

Wire-to-Wire

Montaj

Cable

Connector Housing Typeu2009

Housing for Female Terminals

Yükseklik

33mm

Min. Çalışma Sıcaklığı

-40°C
