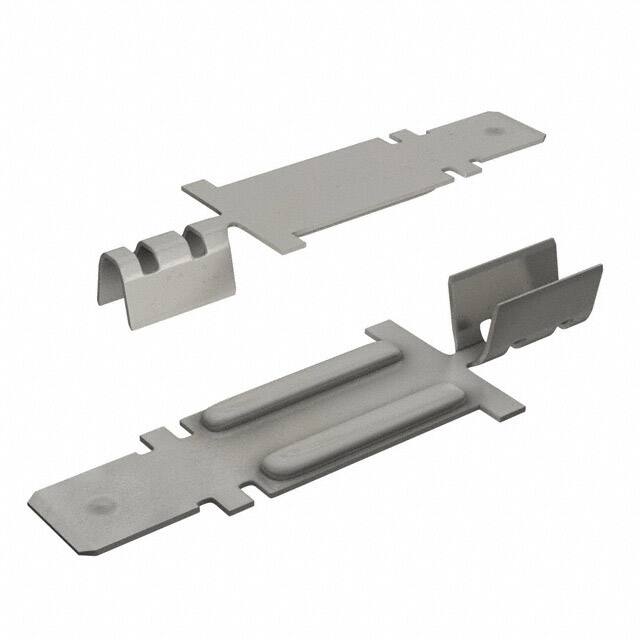

63301-1

Specifications

Parça Durumu

Active

Montaj

Free Hanging

Yayın Yılı

2005

Insertion Loss

0.1 dB

Shell Finish

GOLD

Reliability

COMMERCIAL

Dielectric Withstanding Voltage

1400VAC V

Operating Frequency Max

6GHz

Contact Resistance

5mOhm

Terminal Type

Standard

Option

GENERAL PURPOSE

Seri

Faston

Characteristic Impedance

50Ohm

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Operating Temperature Min

-65°C

Durability

500 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Tab Width

6.35mm

Withdrawl Forcemin

8.0064 N

Mil Conformance

NO

Wire Gauge Min

18 AWG

Coupling Type

SNAP

Number Of Ports

1

Montaj Tipi

Free Hanging (In-Line)

Terminal

Crimp

RoHS Durumu

RoHS Compliant

Elv

Compliant

Fabrika Tedarik Süresi

16 Weeks

Uzunluk

812.8μm

Ambalaj

Tape & Reel (TR)

Özellikler

High Temperature

Body Depth

0.312 inch

Kurşunsuz Kodu

yes

Total Number Of Contacts

1

Cable Types

RD-316

Bodyshell Style

PLUG

Wire Gauge

15-22 AWG

HTS Kodu

8536.69.40.10

Connector Type

RF MCX CONNECTOR

Contact Finish

Nickel
