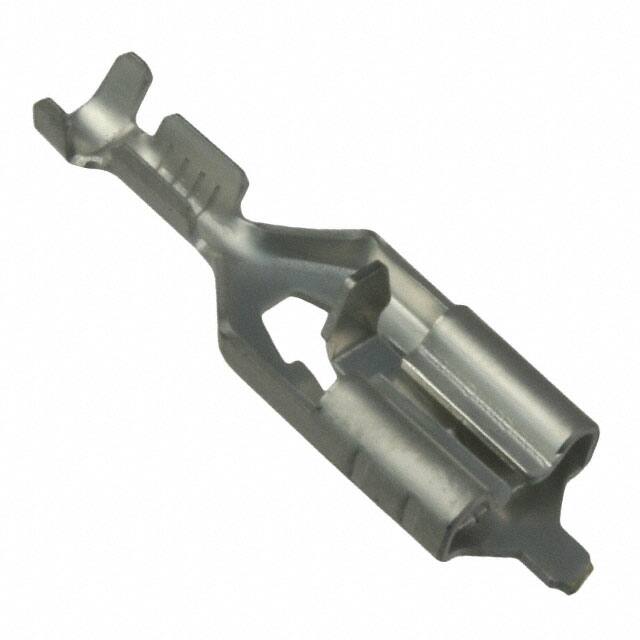

63119-1

Specifications

Length Overall

0.886 22.50mm

Wire Cross Section

0.8 mm2

Wire Gauge

18-22 AWG

Length Tab

0.255 6.48mm

Wirecable Diameter

2.54 mm

Pin Sayısı

250

Terminal And Terminal Block Type

WIRE TERMINAL

Yayın Yılı

1998

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Wire Gauge Max

22 AWG

Contact Plating

Tin

Mating Tab Width

6.35mm

Insulation Diameter

0.060 ~ 0.100 (1.52mm ~ 2.54mm)

Uzunluk

22.5044mm

Tab Thickness

0.032 0.81mm

Wire Gauge Min

18 AWG

Terminal Type

Standard

Lifecycle Status

ACTIVE (Last Updated: 3 days ago)

Insulation

Non-Insulated

Fabrika Tedarik Süresi

5 Weeks

Insulated Wire Support

Yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Free Hanging (In-Line)

Sealable

No

Ambalaj

Tape & Reel (TR)

Kurşunsuz

Lead Free

Width Tab

0.250 6.35mm

Orientation

Straight

Seri

Mark II

HTS Kodu

8536.90.40.00

Parça Durumu

Active

Contact Materials

Brass

Montaj

Free Hanging

Depth

7.6mm

Terminal

Crimp

Gender

Female

Wirecable Type

Discrete

RoHS Durumu

RoHS Compliant
