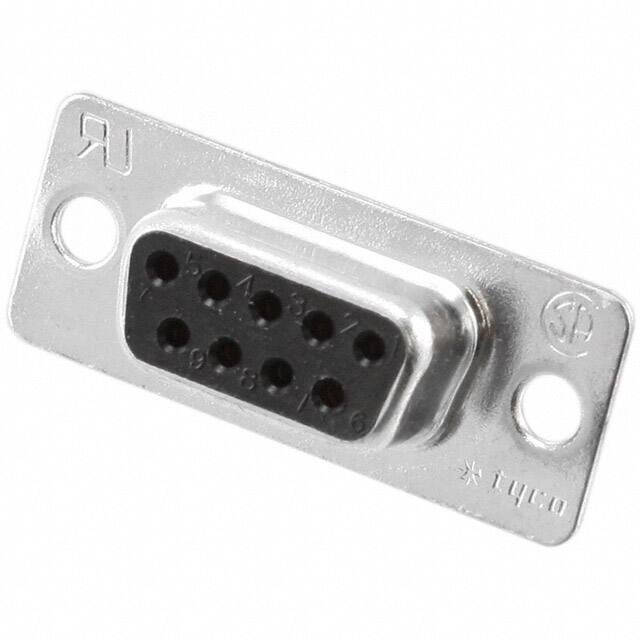

5-747905-5

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

9

Terminal

Solder Cup

Akım Değeri

3A

Sealable

No

Pitch

2.77mm

Sıra Sayısı

2

Gender

Receptacle

Uzunluk

30.8mm

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Ambalaj

Tray

Shell Size Connector Layout

1 DE E

Connector Type

Receptacle, Female Sockets

Contact Design

PREASSEM CONN

Renk

Black

Flange Feature

Housing/Shell (Unthreaded)

Connector Style

D-Sub

Dielectric Material

Polybutylene Terephthalate (PBT), Glass Filled

Mil Conformance

NO

Din Conformance

NO

Mating Connector Lock

With

Contact Materials

Brass

Rated Current Signal

3A

Reference Standard

UL, CSA

Pozisyon Sayısı

9

Contact Type

Signal

Contact Finish Thickness

30.0μin 0.76μm

Orientation

Straight

Empty Shell

NO

Insulation Resistance

5000000000Ohm

Depth

14.9mm

Yayın Yılı

2005

Contact Finish

Gold

Iec Conformance

NO

Number Of Ports

1

Elv

Compliant

RoHS Durumu

RoHS Compliant

Plating

Tin

Option

GENERAL PURPOSE
