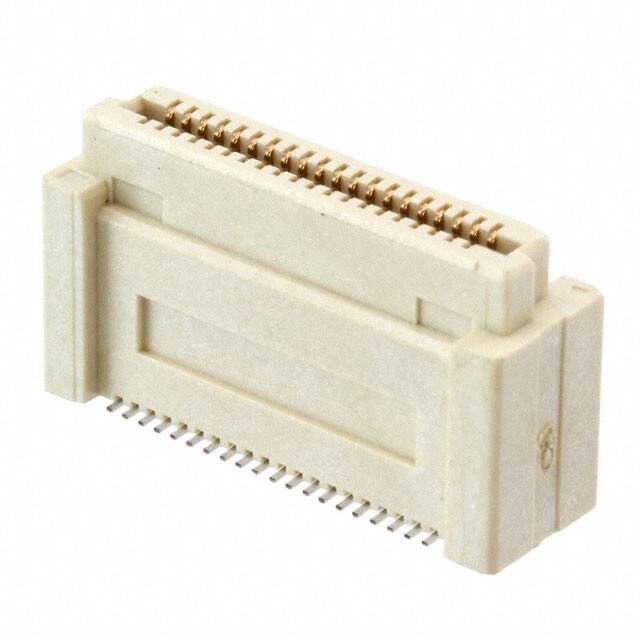

5-5179010-1

Specifications

Uzunluk

21.8mm

Height Above Board

0.463 11.75mm

Pozisyon Sayısı

40

Depth

6.8mm

Yükseklik

13.0048mm

Mil Conformance

NO

Nominal Gerilim

100V

Housing Color

Natural

Reach Svhc

No SVHC

Ambalaj

Tube

Filter Feature

NO

Contact Finish Thickness Mating

200 nm

Stack Height

15mm

Contact Pattern

RECTANGULAR

Row Spacing

2.4 mm

Orientation

Vertical

Kurşunsuz Kodu

yes

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Option

GENERAL PURPOSE

Seri

Free Height (FH)

Additional Feature

ROHS AND ELV COMPLIANT

Contact Finish Thickness

8.00μin 0.203μm

Rated Current Signal

0.5A

Reliability

COMMERCIAL

Number Of Conductors

ONE

Contact Resistance

30mOhm

Mixed Contacts

NO

Lead Pitch

800μm

Iec Conformance

NO

Dielectric Withstanding Voltage

500VAC V

Housing Material

Polymer

ECCN Kodu

EAR99

Terminal

SMD/SMT, Solder

Voltage Rated Ac

100V

Fabrika Tedarik Süresi

9 Weeks

Gender

Receptacle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pcb Mount Retention

Without

Min. Çalışma Sıcaklığı

-40°C

Max Voltage Rating Ac

100V
