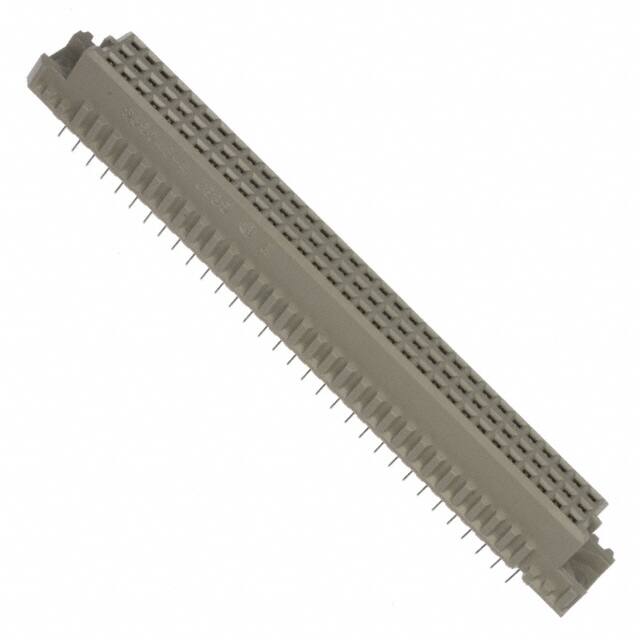

535043-4

Specifications

Depth

10.59mm

Insulation Resistance

1000000000000Ohm

Seri

Eurocard

Din Conformance

YES

Nominal Gerilim

250V

Insulator Color

GRAY

Contact Finish Thickness

30.0μin 0.76μm

Sıra Sayısı

3

Max Voltage Rating Ac

250V

Kurşunsuz Kodu

no

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active

Number Of Signal Positions

96

Pitch

0.100 2.54mm

Flammability Rating

UL94 V-0

Length Tail

4.83mm

Style

C

Total Number Of Contacts

96

Kurşunsuz

Contains Lead

ECCN Kodu

EAR99

Housing Color

Grey

Connector Type

Receptacle, Female Sockets

Mating Information

NO

Level Class

2

Number Of Positions Loaded

All

Filter Feature

NO

Iec Conformance

NO

RoHS Durumu

Non-RoHS Compliant

Gender

Female

Circuit Applications

Signal

Ul Flammability Code

94V-0

Number Of Columns

32

Number Of Pcb Rows

3

Row Spacing

2.54 mm

Contact Materials

Bronze

Orientation

Straight

Uzunluk

94mm

Lead Pitch

2.54mm

Elv

Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)
