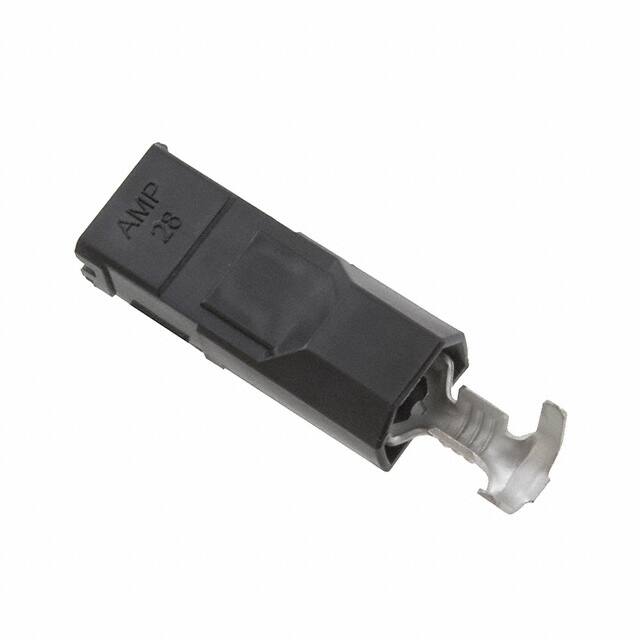

521408-2

Specifications

Gender

Female

RoHS Durumu

RoHS Compliant

Tab Thickness

0.020 0.51mm

Maks. Çalışma Sıcaklığı

105°C

Montaj Tipi

Free Hanging (In-Line)

Insulation Materials

Nylon

RoHS

Details

Mating Tab Thicknessu2009

.51u2009mmu2009[u2009.02u2009inu2009]

Yayın Yılı

2011

Width Tab

0.110 2.79mm

Wire Sizeu2009awg

22 – 18

Contact Finish

Tin

Terminal

Crimp

Renk

Black

Plating Thickness

1.016μm

Elv

Compliant

Wirecable Type

Discrete

Ürün Tipi

Terminals

Kurşunsuz

Not Applicable

Contact Materials

Brass

Tip

Quick Disconnect Terminal

Insulated Wire Support

Yes

Wire Sizeu2009mm

.32 – .82

Mating Tab Widthu2009

2.8u2009mmu2009[u2009.11u2009inu2009]

Plating

Tin

Housing Material

Nylon

Lifecycle Status

ACTIVE (Last Updated: 1 week ago)

Wire Gauge Max

22 AWG

Orientation

Straight

Contact Plating

Tin

Montaj

Free Hanging

Wire Gauge Min

18 AWG

Ambalaj

Tape & Reel (TR)

Radyasyon Dayanımı

No

Te Internal Description

ULTRA-POD 110 ASSY REC 22-18 AWG TPBR

Parça Durumu

Active

Tradename

FASTON

Insulation Diameter

0.080 ~ 0.120 (2.03mm ~ 3.05mm)

Paket

Retail Package

Ürün Durumu

Active
