Specifications
- Body Breadth
- 0.275 inch
- Terminal
- Solder
- Dielectric Withstanding Voltage
- 300VAC V
- Lifecycle Status
- ACTIVE (Last Updated: 2 days ago)
- Sıra Sayısı
- 1
- Contact Materials
- Bronze
- Housing Color
- Black
- Flammability Rating
- UL94 V-0
- Note
- Contacts Not Included
- Option
- GENERAL PURPOSE
- Elv
- Compliant
- Mating Post Length
- 8.08mm
- Akım Değeri
- 1.5A
- Housing Material
- Polyester
- Material Flammability Rating
- UL94 V-0
- Fabrika Tedarik Süresi
- 13 Weeks
- Pitch
- 0.050 1.27mm
- Underplate Material
- Nickel
- Parça Durumu
- Active
- Montaj
- Solder, Through Hole
- High Temperature Housing
- No
- Contact Style
- SQ PIN-SKT
- Ffc Fcb Thickness
- 0.05-0.08mm
- Contact Plating
- Gold
- Durability
- 200 Cycles
- Total Number Of Contacts
- 4
- Pozisyon Sayısı
- 4
- Reach Svhc
- Unknown
- Operating Supply Voltage
- 100V

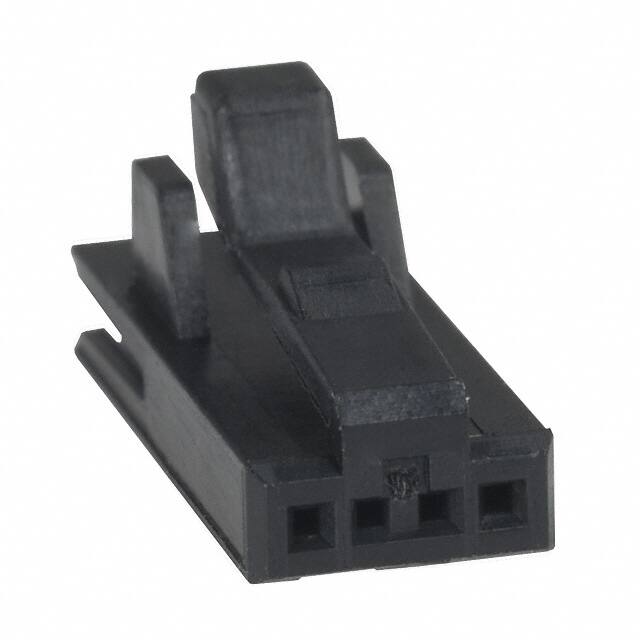

- Connector Type
- Housing for Female Contacts
- Gender
- Receptacle
- Filter Feature
- NO
- Iec Conformance
- NO
- Mixed Contacts
- NO
- Mil Conformance
- NO
- Uzunluk
- 6.17mm
- Din Conformance
- NO
- Mating Alignment
- With
- Contact Pattern
- RECTANGULAR
- Insulation Resistance
- 5GOhm
