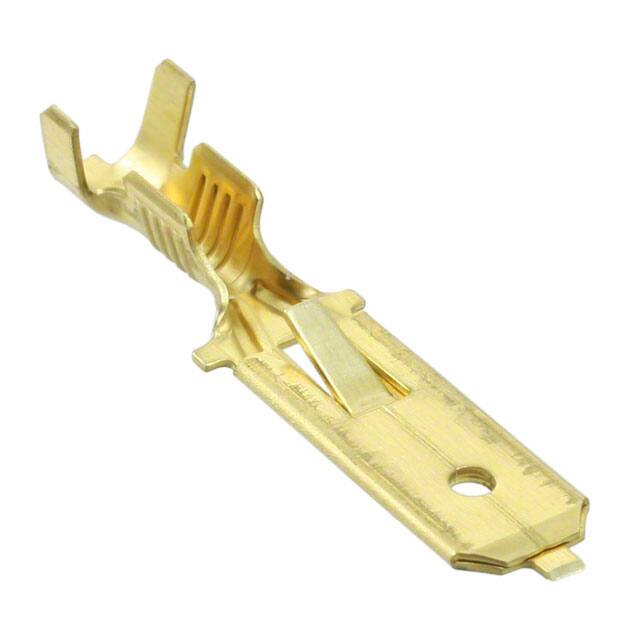

42460-1

Specifications

Ihs Manufacturer

TE CONNECTIVITY LTD

Termination Method

Crimp

Terminal Material

Brass

Renk

Not Required

Overall Length

28.07mm

ECCN Kodu

EAR99

Mating Tab Width

6.35mm

Contact Plating

Brass, Unplated

Wire Size

18 to 14, 18 AWG

Insulation

Non-Insulated

Product Length Mm

28.07(mm)

Brand Name

AMP

Montaj Tipi

Free Hanging (In-Line)

Tab Thickness

0.032 0.81mm

Insulation Materials

Not Insulated

Wire Gauge Max

14 AWG

Terminal

Crimp

Orientation

Straight

Tradename

FASTON

Depth

6.35mm

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Elv

Compliant

Operating Temp Range

-40C to 110C

Width Tab

0.250 6.35mm

Contact Gender

Male

Fabrika Tedarik Süresi

4 Weeks

Insulator Material

Uninsulated

Material

Brass

Parça Durumu

Active

Üretici Parça No

42460-1

Terminal And Terminal Block Type

TAB TERMINAL

Length Overall

1.107 28.12mm

Plating

Unplated

Manufacturer Series

42460

Kurşunsuz

Lead Free

Terminal Type

Standard

Tab Width

6.35mm

Tip

Quick Disconnect Ter

Body Plating

Not Required

Genişlik

6.47mm
