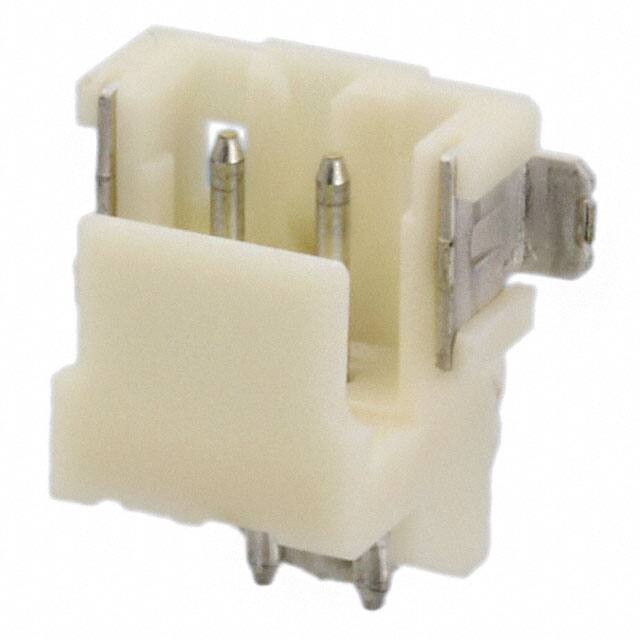

3-292173-2

Specifications

Sealable

No

Pitch Mating

0.079 2.00mm

Wirecable Type

Discrete

Onay Kuruluşu

UL

RoHS Durumu

RoHS Compliant

Contact Materials

Brass

Sıra Sayısı

1

Nominal Gerilim

125VAC

Wirecable Gauge

22 AWG

Contact Resistance

20mOhm

Maks. Çalışma Sıcaklığı

221°C

Shape

Rectangular

Housing Color

Natural

Contact Current Rating

4A

Seri

CT

Material Flammability Rating

UL94 V-0

Genişlik

9mm

Özellikler

Solder Retention

Filter Feature

NO

Style

Board to Cable/Wire

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Uzunluk

5.8mm

Akım Değeri

4A

Pcb Mounting Orientation

Right Angle

Contact Shape

Square

Yayın Yılı

2007

Number Of Positions Loaded

All

Montaj

Surface Mount

Contact Lengthmating

0.165 4.20mm

Mating Post Length

4.2mm

Pozisyon Sayısı

2

Mil Conformance

NO

Ul Flammability Code

94V-0

Applications

General Purpose

Shrouding

Shrouded - 4 Wall

Ambalaj

Tape & Reel (TR)

Plating Thickness

2μm

Insulation Materials

Polyamide (PA6T), Nylon 6T, Glass Filled

Operating Supply Voltage

125V
