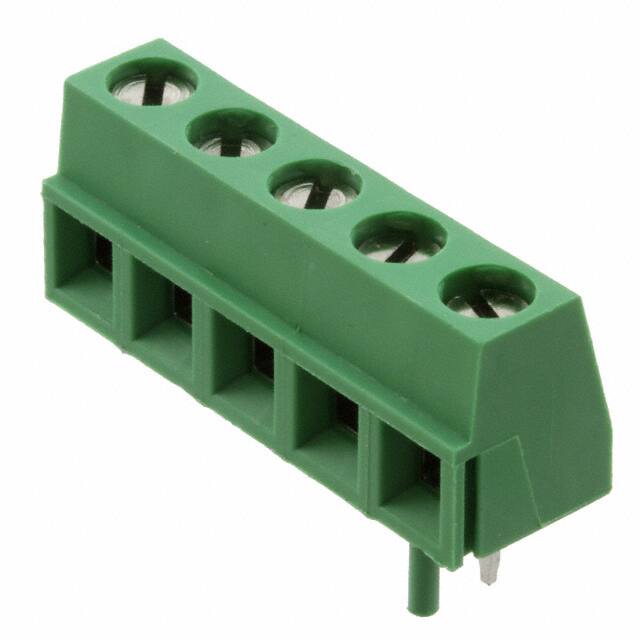

3-282836-3

Specifications

Ambalaj

Tray

Flammability Rating

UL94 V-0

Additional Feature

UL94V-0

Pitch

0.197 5.00mm

Fastening Method

SOLDER

Elv

Compliant

Lifecycle Status

ACTIVE (Last Updated: 6 days ago)

Pozisyon Sayısı

5

Wire Gauge

16-30 AWG

Screw Material Plating

Bronze - Nickel Plated

Mating Orientation

Horizontal with Board

Housing Material

Polyamide (PA66), Nylon 6/6

Fabrika Tedarik Süresi

7 Weeks

Connector Type

Receptacle

Length Tail

3.5mm

Parça Durumu

Active

Contact Material Plating

Brass - Tin Plated

Max Current Rating

13.5A

Yayın Yılı

2011

Terminal And Terminal Block Type

MODULAR TERMINAL BLOCK

Clamp Material Plating

Brass - Nickel Plated

Nem Hassasiyeti (MSL)

1 (Unlimited)

Positions Per Level

5

Renk

Green

Özellikler

Interlocking (Side)

Number Of Levels

1

ECCN Kodu

EAR99

Contact Plating

Tin

Seri

Buchanan

Number Of Decks

1

Wire Termination

Screw - Rising Cage Clamp

Nominal Gerilim

300V

Montaj Tipi

Through Hole

Screw Thread

M3

Safety Approval

UL

Number Of Ways

5

Sıra Sayısı

1

Contact Materials

Brass

RoHS Durumu

RoHS Compliant
