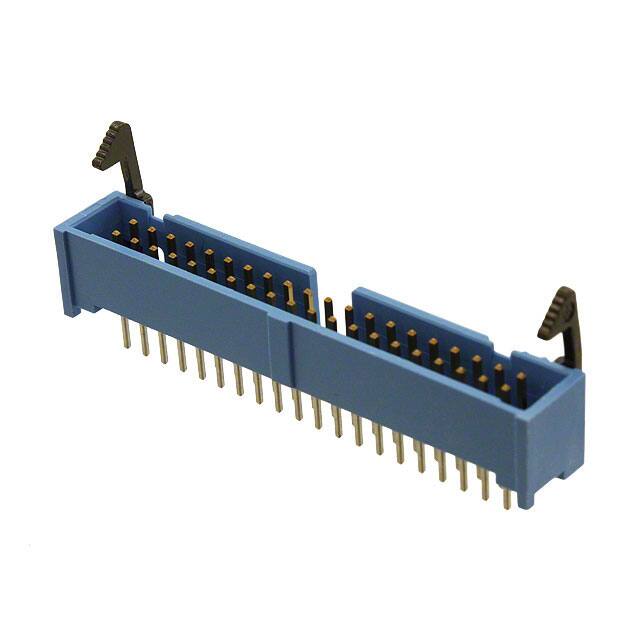

3-1761713-3

Specifications

Housing Color

Blue

Contact Shape

Square

Yayın Yılı

2011

Iec Conformance

NO

Mixed Contacts

NO

Orientation

Vertical

Sıra Sayısı

2

Pozisyon Sayısı

40

Connector Type

Header

ECCN Kodu

EAR99

Montaj

Through Hole

Material Flammability Rating

UL94 V-0

Seri

AMP-Latch

Contact Finish Thickness Mating

30.0μin 0.76μm

Flammability Rating

UL94 V-0

Terminal

Solder

Style

Board to Cable/Wire

Number Of Conductors

ONE

Circuit Applications

Signal

Mil Conformance

NO

Option

GENERAL PURPOSE

Mating Contact Pitch

0.1 inch

Parça Durumu

Active

Reliability

COMMERCIAL

Radyasyon Dayanımı

No

Housing Material

PBT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Lifecycle Status

ACTIVE (Last Updated: 6 days ago)

Özellikler

Keying Slot

Contact Type

Male Pin

Contact Lengthmating

0.237 6.02mm

Shrouding

Shrouded - 4 Wall

Pcb Contact Pattern

RECTANGULAR

Shrouded End Dimension

3.76 mm

RoHS Durumu

RoHS Compliant

Uzunluk

58.42mm

Fastening Type

Latch Lock/Eject Hooks, Short

Ul Flammability Code

94V-0

Insulation Height

0.404 10.26mm

Contact Finish Post

Tin
