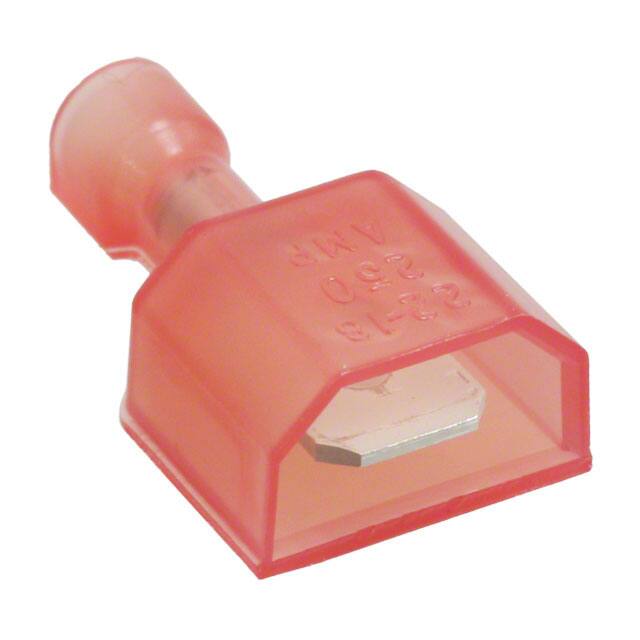

2-520102-2

Specifications

Insulation

Fully Insulated

Nem Hassasiyeti (MSL)

1 (Unlimited)

Wire Gauge

18-22 AWG

Sealable

No

Length Overall

0.855 21.72mm

Orientation

Straight

Wire Gauge Min

18 AWG

Wirecable Diameter

3.43 mm

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Depth

13.25mm

Renk

Red

Wire Cross Section

0.89 mm2

Mating Tab Width

6.35mm

Ambalaj

Tape & Reel (TR)

Reach Svhc

Unknown

ECCN Kodu

EAR99

Terminal And Terminal Block Type

TAB TERMINAL

Yayın Yılı

2006

Fabrika Tedarik Süresi

7 Weeks

Parça Durumu

Active

Terminal

Crimp

Tab Thickness

0.032 0.81mm

Terminal Type

Standard

Akım Değeri

4A

Montaj

Free Hanging

Wirecable Gauge

22 AWG

Insulation Diameter

0.135 (3.43mm)

Gender

Male

Insulated Wire Support

Yes

RoHS Durumu

RoHS Compliant

Wirecable Type

Discrete

Insulation Materials

Nylon

Montaj Tipi

Free Hanging (In-Line)

Contact Plating

Tin

Kurşunsuz

Lead Free

Seri

Ultra-Fast

Width Tab

0.250 6.35mm

Flammability Rating

UL94 V-2

HTS Kodu

8536.90.40.00

Wire Gauge Max

22 AWG
