Specifications
- Kurşunsuz
- Lead Free
- Wire Sizeu2009cma
- 509 – 3260
- Lifecycle Status
- ACTIVE (Last Updated: 4 days ago)
- Ambalaj
- Tape & Reel (TR)
- RoHS Durumu
- RoHS Compliant
- Wire Gauge
- 16-22 AWG
- Kurşunsuz Kodu
- yes
- Length Ring Center To Termination
- 0.312 7.92mm
- Length Overall
- 0.685 17.40mm
- Diameter Inside
- 1.55 mm
- Fabrika Tedarik Süresi
- 13 Weeks
- Te Internal
- 2-34118-2
- Contact Materials
- Copper
- Wire Sizeu2009mm
- .3 – 1.42
- Contact Finish
- Tin
- Tongue Inside Opening
- 0.197 (5.00mm)
- Material Thickness
- 790μm
- Montaj
- Free Hanging
- Elv
- Compliant
- Width Outer Edges
- 0.375 9.53mm
- Terminal
- Crimp
- Te Internal Description
- SOLIS SPD 22-16COMM22-18MIL 10
- Length Termination
- 0.181 4.60mm
- Uzunluk
- 17.4mm
- Wire Gauge Max
- 22 AWG
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Stud Sizeu2009
- 10
- Wire Sizeu2009awg
- 22
- Stud Diameter
- 5 mm
- Terminal And Terminal Block Type

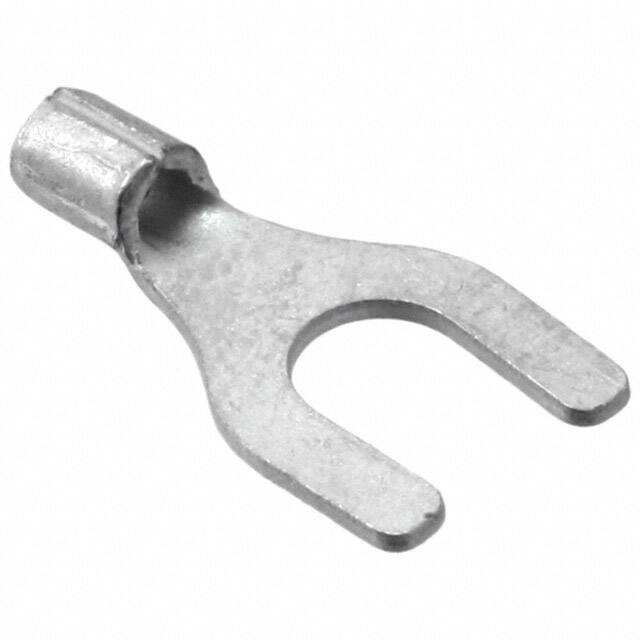

- FORK TERMINAL
- Terminal Type
- Standard
- Özellikler
- Brazed Seam, Serrated Termination
- Renk
- Blue
- Studtab Size
- 10 Stud
- Ring Spade Terminal Typeu2009
- Spade Tongue
- Heavy Duty
- No
- Seri
- Solistrand
- Insulation
- Non-Insulated
- Yayın Yılı
- 2002
- HTS Kodu
- 8536.90.40.00
