Specifications
- Montaj Stili
- Board Lock
- Connector Type
- RJ45
- Contact Materials
- Copper Alloy
- Yükseklik
- 25.55mm
- Number Of Positions Loaded
- 8
- Mounting Angle
- Right Angle
- RoHS Durumu
- RoHS Compliant
- Contact Plating
- Gold
- Terminal Stili
- Through Hole
- Basehousing Material
- LCP (Liquid Crystal Polymer)
- Gender
- Receptacle
- Tip
- RJ45
- Number Of Positions Contacts Per Port
- 8P8C
- Termination Method
- Solder
- Çalışma Sıcaklığı
- -40°C~85°C
- Terminal
- Solder
- Voltage Rating
- 2250 VDC
- Orientation
- 90° Angle (Right)
- Te Internal Description

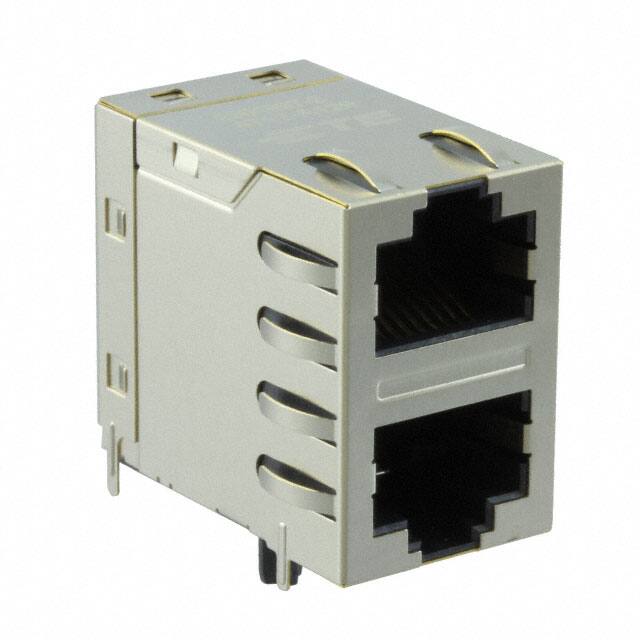

- RJ45 JACK INT.MAG. 10/100 2X1
- Port Configurationu2009
- Multiple Ports
- Housing Material
- Liquid Crystal Polymer (LCP)
- Modular Jacks Plugs Productsu2009
- RJ Type Jacks & Plugs
- Minimum Operating Temperature
- - 40 C
- Contact Finish Thickness Mating
- 760 nm
- Yayın Yılı
- 2017
- Pitch
- 1.2700 mm
- Body Orientation
- Right Angle
- Ambalaj
- Tray
- Mounting
- Through Hole
- Flammability Rating
- UL 94 V-0
- Performance Category
- Cat 5
- Özellikler
- Board Lock
- Number Of Terminals
- 16
- Mating Cycles
- 750 Cycle
- Housing Color
- Black
- Lifecycle Status
- ACTIVE (Last Updated: 5 days ago)
- Montaj Tipi
- Through Hole
- Tab Direction
- Up and Down
- Maks. Çalışma Sıcaklığı
- + 85 C
- Product Length
- 17.07 mm
