Specifications
- Gender
- Receptacle
- Basehousing Material
- LCP (Liquid Crystal Polymer)
- Terminal Stili
- Solder Pin
- Samacsys Description

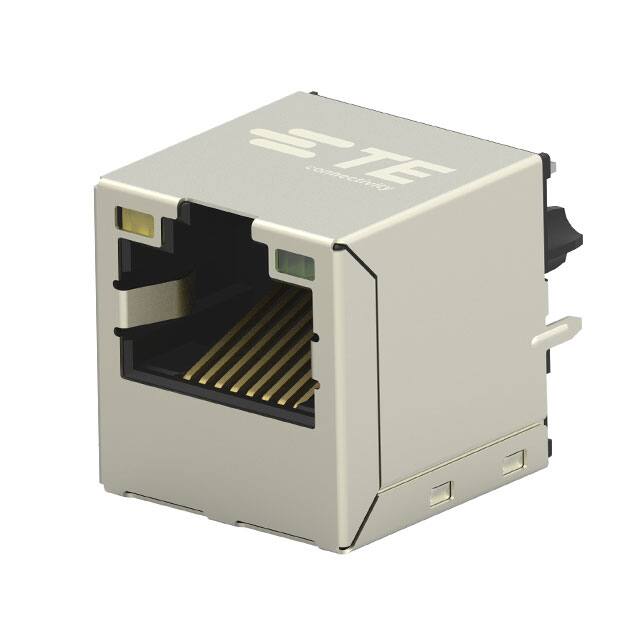

- RJ45 vertical magnetic jack, 1 Gb w/LED
- Terminal
- Solder
- Termination Method
- Solder
- Çalışma Sıcaklığı
- -40°C~85°C
- Rohs Code
- Yes
- Number Of Positions Contacts Per Port
- 8P8C
- Tip
- RJ45
- Renk
- Black
- Yükseklik
- 16.9mm
- Contact Materials
- Copper Alloy
- Port Configuration
- 1 x 1 (Port)
- REACH Uyumluluk Kodu
- compliant
- Connector Type
- RJ45
- Montaj Stili
- Board Lock
- Contact Finish Mating
- NOT SPECIFIED
- Contact Plating
- Gold
- RoHS Durumu
- RoHS Compliant
- Mounting Angle
- Vertical
- HTS Kodu
- 8536.69.40.30
- Pitch
- 1.2700 mm
- Üretici Parça No
- 2301995-4
- Brand Name
- TE Connectivity
- Yayın Yılı
- 2017
- Contact Finish Thickness Mating
- 760 nm
- Özellikler
- Board Lock
- Performance Category
- Cat 6
- Flammability Rating
- UL 94 V-0
- Mounting
- Through Hole
- Ambalaj
- Tape & Reel (TR)
- Body Orientation
- Straight
- Housing Material
- Liquid Crystal Polymer (LCP)
- Orientation
- Vertical
- Minimum Operating Temperature
- - 40 C
- ECCN Kodu
- EAR99
- Leds
- With LED
- Maks. Çalışma Sıcaklığı
- + 85 C
- Birim Ağırlık
- 0.211644 oz
