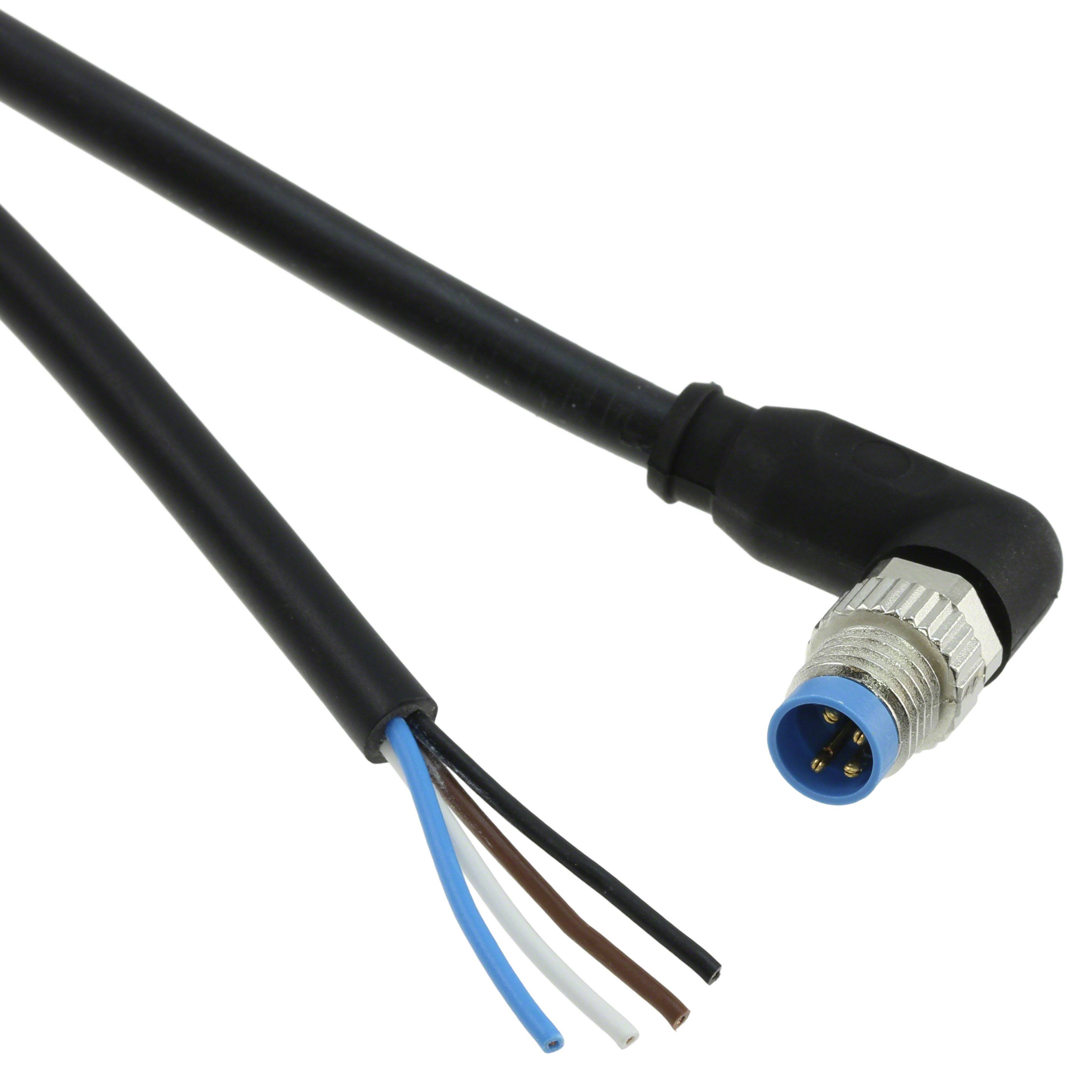

2273010-1

Specifications

Minimum Bend Radius

44 mm

Connector Type

Plug

Wire Gauge Awg

22 AWG

Assembly Configuration

Standard

2nd Connector Type

Wire Leads

Wire Gauge

22(AWG)

Part Life Cycle Code

Active

Connection Side B

M8 plug, right angle

Ihs Manufacturer

TE CONNECTIVITY LTD

Operating Temperature Range

-40 → +80 °C

Connector End A Pin Count

4 Position

Minimum Operating Temperature

-40°C

1st Connector Mounting Type

Free Hanging (In-Line)

Connections

Open end cable

Connector Type B

Not Included

Contact Materials

NOT SPECIFIED

Seri

M8

Wire Size

22 AWG

Ratings

IP65

Connector Standard

Sensor connector

Cable Material

Polyurethane (PUR)

Akım Değeri

4A

REACH Uyumluluk Kodu

compliant

Min. Çalışma Sıcaklığı

-40°C

RoHS

Details

Insulation Materials

PUR

Usage

Industrial Environments

Seal Type

Screw-on

Ingress Protection

IP65/67 - Dust Tight, Water Resistant, Waterproof

Operating Temp Range

-40C to 80C

Elv

Compliant

Content

1pc(s)

Max Temperature

+80°C

Fabrika Tedarik Süresi

19 Weeks

Uzunluk

4.92' 1.50m

Connector End B

Pigtail

Gender

Male

Yayın Yılı

2014

Connector End A

M8

Outer Diameter

4.4mm
