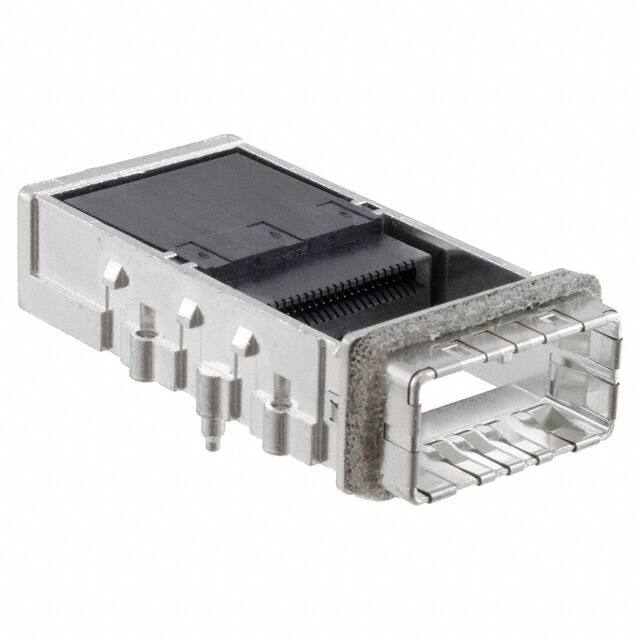

2149159-3

Specifications

Contact Finish Mating

NOT SPECIFIED

Min. Çalışma Sıcaklığı

-40°C

Tip

CXP

Mounting Angle

Right Angle

Part Life Cycle Code

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

NOT SPECIFIED

Risk Rank

2.22

Connector Style

Receptacle with Cage

Maks. Çalışma Sıcaklığı

+ 85 C

Number Of Contacts

84 POS

Housing Material

Polymer

Üretici Parça No

2149159-3

Manufacturer Series

2149159

Max Current Rating

500mA

Nominal Gerilim

120V

Mounting

Through Hole

Termination Method

Press Fit

RoHS Durumu

RoHS Compliant

Montaj Tipi

Through Hole, Right Angle

Positions Loaded

84

Pitch

16.37mm

Connector Type

CXP

Özellikler

Board Guide, EMI Shielded, Heat Sink, Light Pipe

RoHS

Details

Current Rating Max

0.5/Contact(A)

Rohs Code

Yes

Ambalaj

Tray

Family

2149159

Housing Color

Black

Orientation

Right Angle

Contact Finish

Gold

Basehousing Material

LCP (Liquid Crystal Polymer)

Number Of Ports

1

Gender

Receptacle

Birim Ağırlık

1.410958 oz

Pcb Thickness

1.5748mm

Flammability Rating

UL94 V-0

Circuit Applications

Signal

Data Rate

125 Gbps
