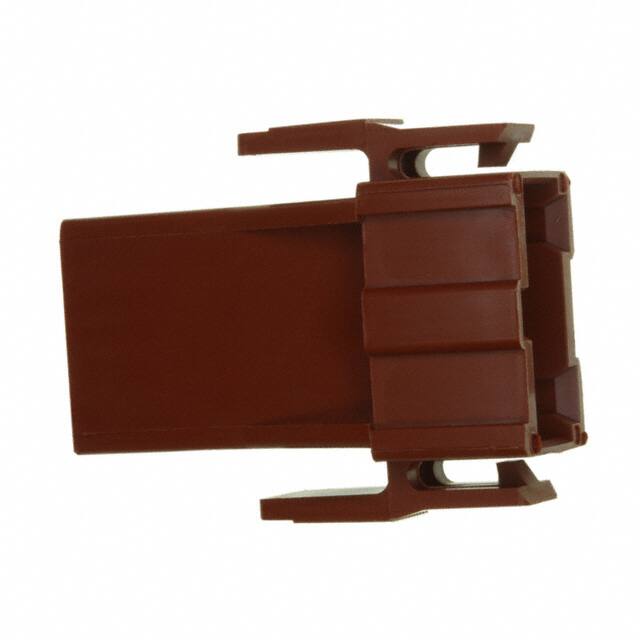

207359-1

Specifications

Renk

Black or Red

Body Breadth

1.034 inch

Body Depth

1.327 inch

RoHS Durumu

RoHS Compliant

Mounting Option1

LATCH

Pitch Mm

5(mm)

Material

Thermoplastic

Wirecable Type

Discrete

Filter Feature

NO

Contact Termination

Crimp and Solder

Çalışma Sıcaklığı

-55 to 130 °C

Number Of Contact Rows

1

Ürün Tipi

Headers & Wire Housings

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

1998

Depth

33.7mm

Rohs Code

Yes

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Kurşunsuz Kodu

Yes

Mixed Contacts

NO

Pozisyon Sayısı

3

Flammability Rating

UL94 V-0

Montaj Stili

Cable

Uzunluk

40.77mm

Max Current Rating

14A

Insulator Color

RED

Operating Supply Voltage

600V

Contact Gender

Female

Product Depth Mm

33.7(mm)

RoHS

Details

Contact Finish Mating

NOT SPECIFIED

Pitch

0.197 5.00mm

Seri

Metrimate

Mating Contact Pitch

0.197 inch

Üretici Parça No

207359-1

Row Spacing

5 mm

Contact Materials

NOT SPECIFIED

Operating Temp Range

-55C to 130C

Product Height Mm

12.32(mm)

Housing Material

Nylon
