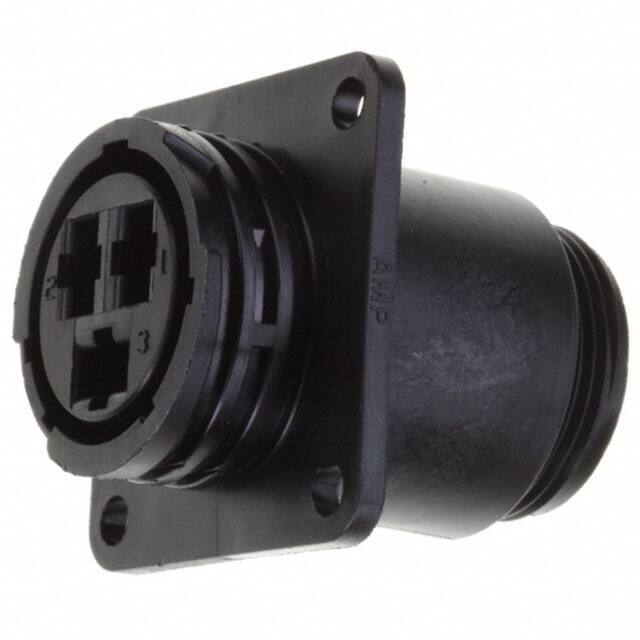

206425-1

Specifications

Kurşunsuz Kodu

yes

Montaj Tipi

Panel Mount

Iec Conformance

NO

Yayın Yılı

1997

Body Material

Glass, Nylon, Polyamide, Thermoplastic

Connector Systemu2009

Wire-to-Panel

Sealable

No

Mating Retention

With

Voltage Rated Dc

250V

Elv

Compliant

Filter Feature

NO

Çalışma Sıcaklığı

-55°C~105°C

Montaj

Panel

Shell Material

Polyamide (PA), Nylon

Mixed Contacts

NO

Sealableu2009

No

Note

Contacts Not Included

Empty Shell

YES

Tip

For Female Sockets

Gender

Receptacle

Flammability Rating

UL94 V-0

Shell Size Insert

17-3

Depth

41.53mm

Insulation Diameter

5.588 mm

RoHS Durumu

RoHS Compliant

Pin Sayısı

3

Voltage Rated Ac

250V

Contact Gender

Female

Reach Svhc

No SVHC

Connector Type

Receptacle Housing

Option

GENERAL PURPOSE

Contact Type

Crimp

Number Of Ports

1

Operating Supply Voltage

600V

Uzunluk

36.45mm

Alias

4-40001-7431

Te Internal

206425-1

Pozisyon Sayısı

3 (Power)

Number Of Signal Positions

0

Te Internal Description

17-3 RECPT. REV SEX
