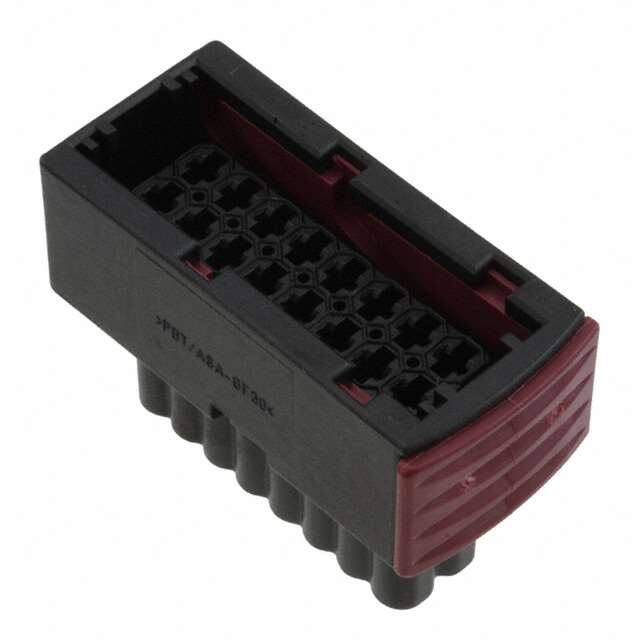

1-967242-1

Specifications

Ambalaj

Bulk

Montaj Tipi

Free Hanging (In-Line)

Te Internal Description

JPT GEH KPL 16P

Parça Durumu

Active

Contact Termination

Crimp

Insulation Materials

POLYBUTYLENE TEREPHTHALATE

RoHS Durumu

RoHS Compliant

Shell Material

GLASS FILLED POLYBUTYLENE TEREPHTHALATE

Note

Contacts Not Included

Option

GENERAL PURPOSE

Mounting Option1

LOCKING

Pozisyon Sayısı

16

Genişlik

24.3mm

Din Conformance

NO

Mixed Contacts

NO

Centerline Pitchu2009

5u2009mmu2009[u2009.197u2009inu2009]

Connector Housing Typeu2009

Housing for Female Terminals

Mil Conformance

NO

Fabrika Tedarik Süresi

13 Weeks

Yayın Yılı

2001

Body Breadth

1.035 inch

Contact Finish Mating

NOT SPECIFIED

HTS Kodu

8536.69.40.30

Filter Feature

NO

Te Internal

1-967242-1

Contact Type

Female Socket

Contact Materials

NOT SPECIFIED

Number Of Conductors

ONE

Pitch

0.197 5.00mm

Renk

Black

Empty Shell

NO

Connector Type

Receptacle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Row Spacing

0.236 (6.00mm)

Sıra Sayısı

2

Number Of Positionsu2009

16

Body Depth

0.78 inch

Lifecycle Status

ACTIVE (Last Updated: 1 week ago)

Total Number Of Contacts

16
