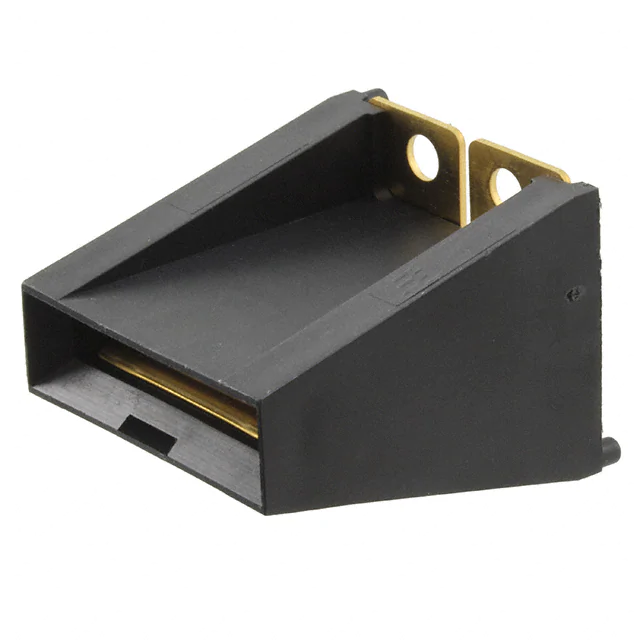

1926671-1

Specifications

Montaj

Panel

Operating Temperature Min Deg C

-55C

Product Length

31.75 mm

Çalışma Sıcaklığı

-40 to 105 °C

Depth

26.67mm

Brand Name

Elcon

Manufacturer Series

1926671

Kurşunsuz Kodu

Yes

Ihs Manufacturer

TE CONNECTIVITY LTD

Product Height Mm

35.56(mm)

Housing Material

Thermoplastic

Uzunluk

35.56mm

Tip

Bus Bar Connector

Fabrika Tedarik Süresi

6 Weeks

Number Of Terminals

2

Flammability Rating

UL94 V-0

Operating Supply Voltage

600V

Mounting

Panel Mount

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Gender

Female

Insulation Materials

Thermoplastic

Product Length Mm

31.75(mm)

Sealable

No

Genişlik

26.67mm

Yükseklik

31.75mm

Pcb Mounting Orientation

Vertical

Rohs Code

Yes

Operating Temp Range

-55C to 105C

Product Diameter Mm

Not Required(mm)

Onay Kuruluşu

UL

Orientation

Vertical

Voltage Rated Ac

600V

Risk Rank

2.21

Terminal Sayısı

2

Seri

Crown Clip, Elcon

Terminal Type

Busbar Clip

Pozisyon Sayısı

1

Elv

Compliant

REACH Uyumluluk Kodu

unknown

Part Life Cycle Code

Active
