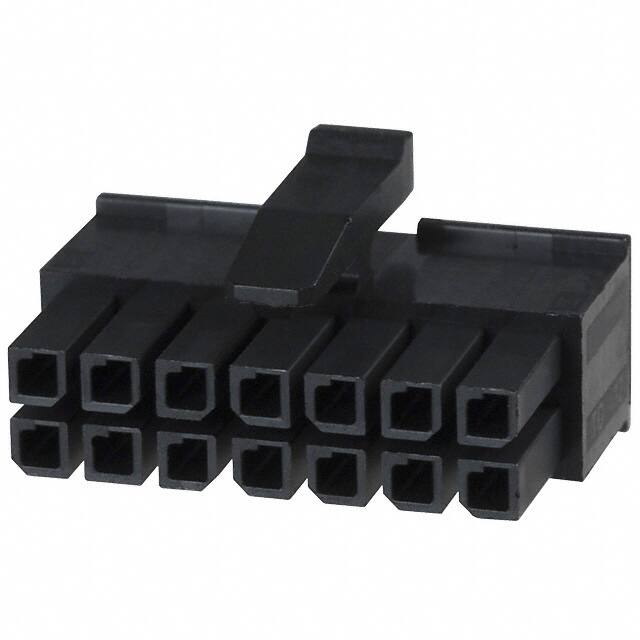

1-794617-4

Specifications

Operating Supply Voltage

250V

Housing Material

Nylon

Option

GENERAL PURPOSE

Max Voltage Rating Ac

250V

Seri

Micro MATE-N-LOK

Mixed Contacts

NO

Ambalaj

Bulk

Reach Svhc

Unknown

Min. Çalışma Sıcaklığı

-40°C

Contact Gender

Female

Kurşunsuz Kodu

yes

Depth

14.04mm

Wire Size Min

30 AWG

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

Note

Contacts Not Included

Onay Kuruluşu

CSA

Pitch

0.118 3.00mm

Maks. Çalışma Sıcaklığı

221°C

Shell Material

POLYAMIDE

Renk

Black

Uzunluk

22mm

Dielectric Withstanding Voltage

1500VAC V

Vde Tested

Yes

Contact Materials

Bronze

Contact Type

Female Socket

Din Conformance

NO

Iec Conformance

NO

Fastening Type

Latch Lock

Nominal Gerilim

250V

Genişlik

11.7mm

Contact Retention

Without

Sealable

No

Row Spacing

0.118 (3.00mm)

Pozisyon Sayısı

14

Max Voltage Rating Dc

250V

Total Number Of Contacts

14

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Flammability Rating

UL94 V-0

Connector Type

Receptacle
