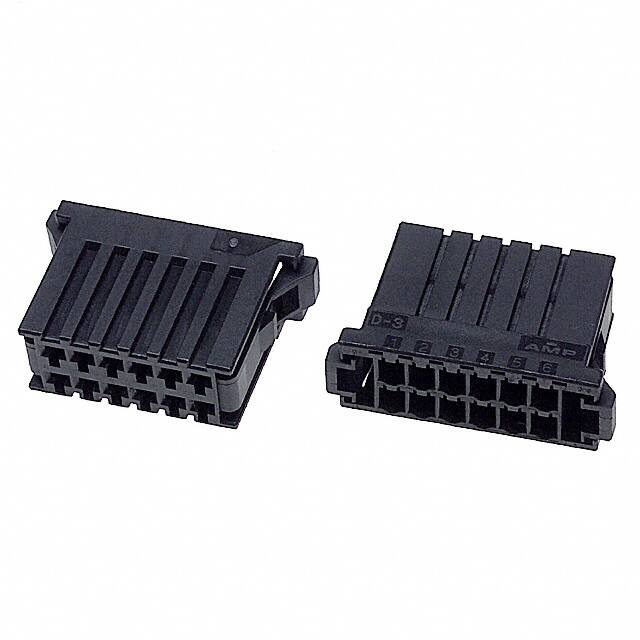

178289-6

Specifications

Brand Name

AMP

For Use With

Dynamic D-3000 Series Socket Contacts

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Preloaded

No

Reach Svhc

Unknown

Voltage Rating

250 V

Pins Per Row

6

Uzunluk

35.7886mm

Contact Type

Female Socket

Housing Material

Polyester

Min Temperature

-55°C

Sealable

No

Housing Gender

Receptacle

Çalışma Sıcaklığı

-55 to 105 °C

Montaj Tipi

Free Hanging (In-Line)

Nominal Voltage

250V AC

REACH Uyumluluk Kodu

unknown

Min. Çalışma Sıcaklığı

-67°C

Shell Material

GLASS FILLED POLYESTER

RoHS

Details

Pin Shape

Rectangular

Max Temperature

+105°C

Onay Kuruluşu

UL

Body Material

Glass, PET, Polyester

Montaj

Cable, Free Hanging

Nominal Current

15A

Additional Feature

COMPATIBLE CONTACTS: 175194-2; 175194-3; 175194-5; 175216-2; 175216-3

Seri

Dynamic D-3100

Reference Standard

UL

Sıra Sayısı

2

Yayın Yılı

2007

Mixed Contacts

NO

Tip

D-3100D

Nominal Current Rounded Value

15A

Gender

Receptacle

Connector Type

Receptacle

Birim Ağırlık

0.184483 oz

Genişlik

12.53mm

Rohs Code

Yes

Nominal Gerilim

250V
