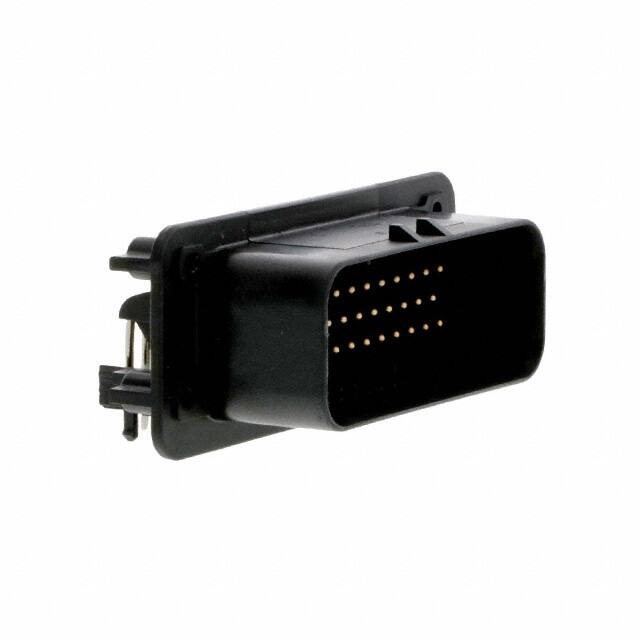

1-776180-1

Specifications

ECCN Kodu

EAR99

Current Rating Amps

Varies by WireGAuge

Fabrika Tedarik Süresi

10 Weeks

Elv

Compliant

Contact Finish Mating

Gold-Palladium

Özellikler

Board Guide, Sealable

Montaj Tipi

Panel Mount, Through Hole, Right Angle

Tab Thickness

1.3mm

Applications

Automotive, Industrial

Yükseklik

32.1mm

Contact Plating

Gold

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Filter Feature

NO

Ul Flammability Code

94V-0

Mil Conformance

NO

Gender

Male

Yayın Yılı

2010

Orientation

Right Angle

Pozisyon Sayısı

35

Terminal

Solder

Genişlik

37.9mm

Pitch Mating

0.157 4.00mm

Nominal Gerilim

250VAC

Fastening Type

Locking Ramp

Iec Conformance

NO

Style

Board to Cable/Wire

Row Spacing Mating

0.157 (4.00mm)

Montaj

Panel, Through Hole

Empty Shell

NO

Lifecycle Status

ACTIVE (Last Updated: 5 days ago)

Connector Type

Header

Flammability Rating

UL94 V-0

Total Number Of Contacts

35

Çalışma Sıcaklığı

-40°C~125°C

Circuit Applications

Power

Radyasyon Dayanımı

No

Din Conformance

NO

Contact Type

Male Pin
