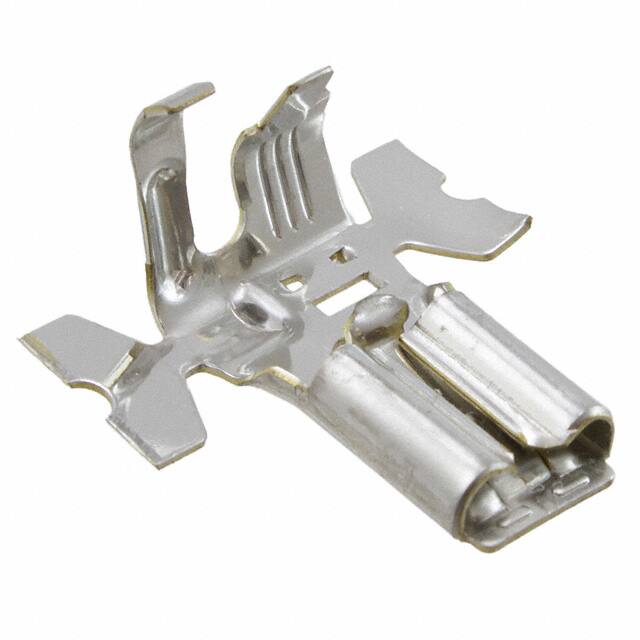

175057-1

Specifications

Wirecable Gauge

18 AWG

Nem Hassasiyeti (MSL)

1 (Unlimited)

Width Tab

0.250 6.35mm

Maks. Çalışma Sıcaklığı

221°C

Terminal

Crimp

Fabrika Tedarik Süresi

19 Weeks

Ambalaj

Tape & Reel (TR)

Orientation

Straight

Sealable

No

Insulation Diameter

0.110 ~ 0.161 (2.79mm ~ 4.09mm)

Contact Finish

Tin

Montaj

Cable, Free Hanging

Insulation

Non-Insulated

RoHS Durumu

RoHS Compliant

Shielding

Unshielded

Lifecycle Status

ACTIVE (Last Updated: 1 day ago)

Min. Çalışma Sıcaklığı

-40°C

Wirecable Diameter

4.1 mm

Seri

Positive Lock EX

Wire Cross Section

3.37 mm2

Terminal Type

Angled - 90°, Flag

Contact Materials

Brass

Elv

Compliant

Yayın Yılı

2005

Depth

9.05mm

Wire Gauge Min

12 AWG

Wirecable Type

Discrete

ECCN Kodu

EAR99

Montaj Tipi

Free Hanging (In-Line), Right Angle

Wire Gauge Max

18 AWG

Connector Type

Connector, PCB, Signal

Uzunluk

19.2786mm

Gender

Female

Yükseklik

11mm

Mating Tab Width

6.35mm

Terminal And Terminal Block Type

PUSH-ON TERMINAL

HTS Kodu

8536.90.40.00

Length Tab

0.307 7.80mm

Tab Thickness

0.032 0.81mm

Wire Gauge

12-18 AWG
