Specifications
- Contact Finish
- Gold
- Montaj Tipi
- Free Hanging (In-Line)
- Material Flammability Rating
- UL94 V-0
- Reliability
- COMMERCIAL
- Flange Feature
- Housing/Shell (Unthreaded)
- Contact Resistance
- 30mOhm
- Terminal
- IDC, Discrete Wire
- Wirecable Type
- Round
- Contact Finish Thickness
- Flash
- Housing Material
- Thermoplastic
- JESD-609 Kodu
- e3
- Özellikler
- Grounding Indents
- Number Of Ports
- 1
- Shell Finish
- TIN
- Shell Material Finish
- Steel, Tin Plated
- Shielding
- Shielded
- Contact Design
- PREASSEM CONN
- Shell Size Connector Layout
- 1 DE E
- Lead Pitch
- 2.74mm
- Insulation Diameter
- 1.52 mm
- Kurşunsuz
- Lead Free
- Plating
- Tin
- Total Number Of Contacts
- 9
- Genişlik
- 12.92mm
- RoHS Durumu
- RoHS Compliant
- Contact Type
- Signal
- Reference Standard
- UL, CSA
- Çalışma Sıcaklığı
- -55°C~105°C
- Contact Materials
- Phosphor Bronze
- Orientation
- Straight
- Montaj
- Free Hanging, Panel
- Din Conformance
- NO
- Max Voltage Rating Ac
- 250V
- Dielectric Material
- Thermoplastic, Glass Filled

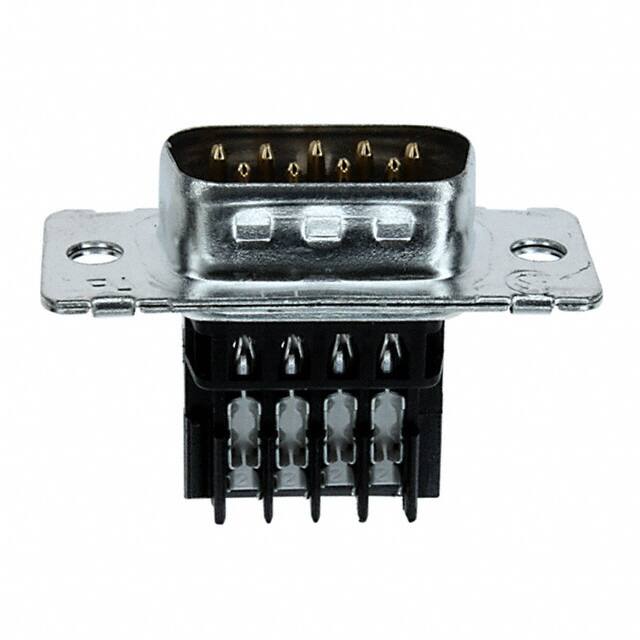

- Connector Style
- D-Sub
- Uzunluk
- 31.19mm
- Empty Shell
- NO
- Ambalaj
- Bulk
- Wire Gauge
- 22-26 AWG
- Iec Conformance
- NO
