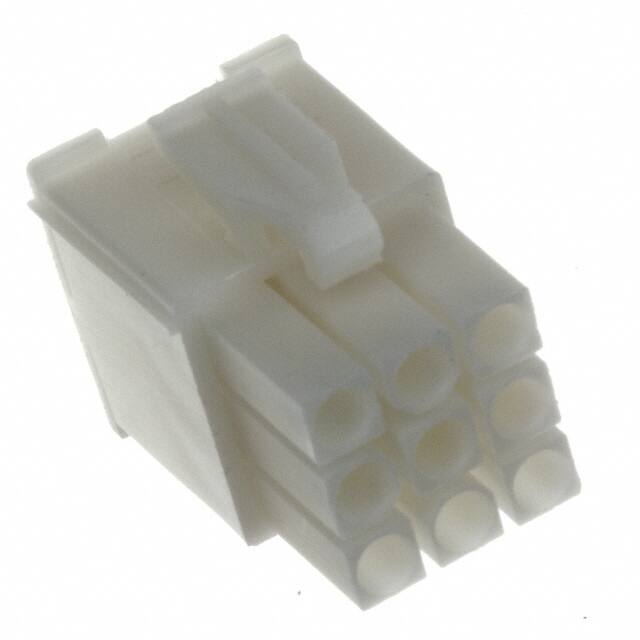

172169-1

Specifications

Kurşunsuz Kodu

yes

Contact Termination

Crimp

Iec Conformance

NO

Reliability

COMMERCIAL

Montaj Tipi

Free Hanging (In-Line)

Yayın Yılı

1999

Wirecable Gauge

30 AWG

Body Breadth

0.551 inch

Sealable

No

Connector Systemu2009

Wire-to-Wire

Voltage Rated Dc

600V

Wire Gauge Max

16 AWG

Elv

Compliant

Filter Feature

NO

Max Voltage Rating Ac

600V

Genişlik

14mm

Row Spacing

0.163 (4.14mm)

Mixed Contacts

NO

Shell Material

POLYAMIDE

Montaj

Free Hanging

Empty Shell

NO

Note

Contacts Not Included

Flammability Rating

UL94 V-0

Depth

23.7mm

Durability

20 Cycles

RoHS Durumu

RoHS Compliant

Contact Retention

Without

Renk

Natural

Voltage Rated Ac

600V

Lead Pitch

4.2mm

Centerline Pitchu2009

4.2u2009mmu2009[u2009.165u2009inu2009]

Reach Svhc

No SVHC

Contact Gender

Male

Connector Type

Plug

Option

GENERAL PURPOSE

Max Voltage Rating Dc

600V

Contact Type

Male or Female

Number Of Contacts

9

Rectangular Power Connector Typeu2009

Housing

Operating Supply Voltage

600V
