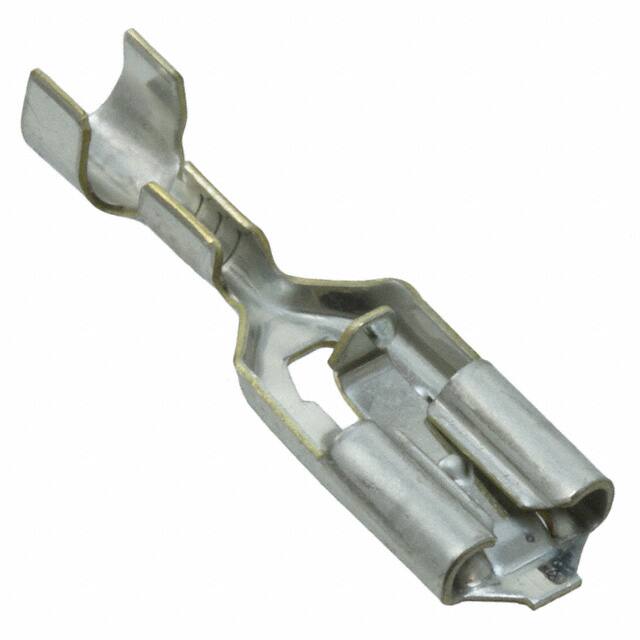

170325-1

Specifications

Length Overall

0.850 21.59mm

Contact Materials

Brass

Nem Hassasiyeti (MSL)

1 (Unlimited)

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Contact Finish

Tin

Sealable

No

HTS Kodu

8536.90.40.00

Mating Tab Width

4.75mm

Insulated Wire Support

Yes

Wire Gauge Min

16 AWG

Elv

Compliant

Insulation Diameter

0.075 ~ 0.134 (1.91mm ~ 3.40mm)

Parça Durumu

Active

Terminal And Terminal Block Type

PUSH-ON TERMINAL

Min. Çalışma Sıcaklığı

-40°C

Wire Cross Section

1.38 mm2

Maks. Çalışma Sıcaklığı

221°C

Terminal

Crimp

Fabrika Tedarik Süresi

14 Weeks

Ambalaj

Tape & Reel (TR)

Gender

Female

Seri

Mark II

Montaj Tipi

Free Hanging (In-Line)

Terminal Type

Standard

Wire Gauge

16-20 AWG

ECCN Kodu

EAR99

Montaj

Free Hanging

Uzunluk

21.59mm

RoHS Durumu

RoHS Compliant

Wire Gauge Max

20 AWG

Kurşunsuz

Not Applicable

Orientation

Straight

Insulation

Non-Insulated

Wirecable Diameter

3.3782 mm

Tab Thickness

0.020 0.51mm

Width Tab

0.187 4.75mm

Yayın Yılı

1997

Wirecable Type

Discrete
