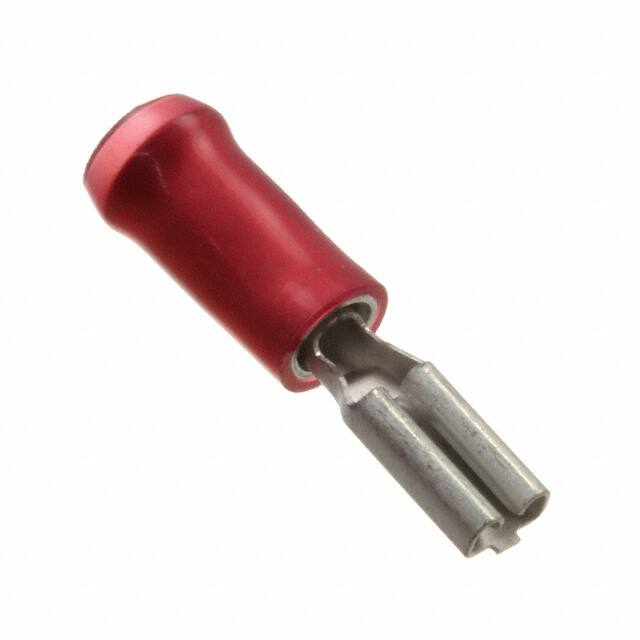

165564-1

Specifications

Insulation Materials

Nylon

Fabrika Paket Adedi

1000

Terminal And Terminal Block Type

WIRE TERMINAL

Gender

Female

Overall Length

19.8mm

Tip

For Female Sockets

Pozisyon Sayısı

53

Uzunluk

19.8mm

Termination Method

Crimp

Terminal

Crimp

Plating

Tin

Sealable

No

Parça Durumu

Active

Connector Type

Tab

Fastening Type

Threaded

Shell Finish

Nickel

HTS Kodu

8536.90.40.00

Product Length

19.8 mm

Wire Sizeu2009awg

22 – 16

Wire Gauge Max

22 AWG

Mating Tab Widthu2009

2.79u2009mmu2009[u2009.11u2009inu2009]

Terminal Material

Brass

Te Internal

165564-1

Yayın Yılı

2007

Renk

Red

RoHS Durumu

RoHS Compliant

Shell Size Insert

23-53

Fabrika Tedarik Süresi

7 Weeks

Quick Disconnect Terminal Typeu2009

Receptacle

Contact Shape

Circular

Tab Thickness

0.016 0.41mm

Material

Brass

Montaj Stili

Push in

Çalışma Sıcaklığı

-65°C ~ 200°C

Terminal Stili

Crimp

Kurşunsuz

Not Applicable

Contact Plating

Tin

Contact Type

Crimp

Montaj Tipi

Free Hanging (In-Line)

Housing Color

Silver
