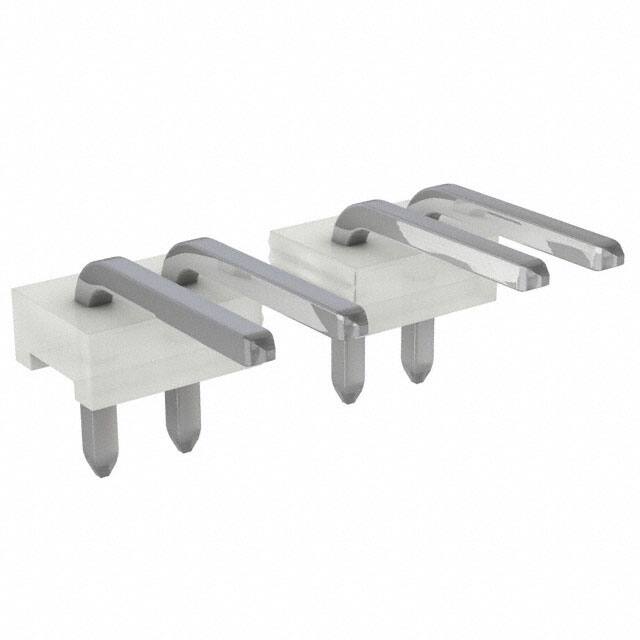

1-640385-3

Specifications

Sıra Sayısı

1

Pcb Thickness

1.6002mm

Terminal

Solder

Fabrika Tedarik Süresi

24 Weeks

Renk

Natural

Nominal Gerilim

600VAC

Connector Type

Header

Housing Color

Natural, White

Ambalaj

Bulk

Seri

MTA-156

Underplate Material

Nickel

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Male Pin

Contact Length Post

0.125 3.18mm

Applications

General Purpose, Industrial

Insulation Color

Natural

Style

Board to Cable/Wire

Radyasyon Dayanımı

No

Contact Lengthmating

0.390 9.91mm

Pitch

3.9624mm

Contact Gender

Male

Operating Supply Voltage

600V

Lead Length

3.18mm

Housing Material

Polyester

Pozisyon Sayısı

13

Yayın Yılı

2008

Min. Çalışma Sıcaklığı

-67°C

Pitch Mating

0.156 3.96mm

Mating Retention

Without

Contact Plating

Tin

Parça Durumu

Active

Plating Thickness

1.27μm

Sealable

No

Orientation

Right Angle

RoHS Durumu

RoHS Compliant

Voltage Rated Ac

600V

Montaj Tipi

Through Hole, Right Angle

Number Of Contacts

13

Insulation Height

0.125 3.18mm

Montaj

Through Hole
