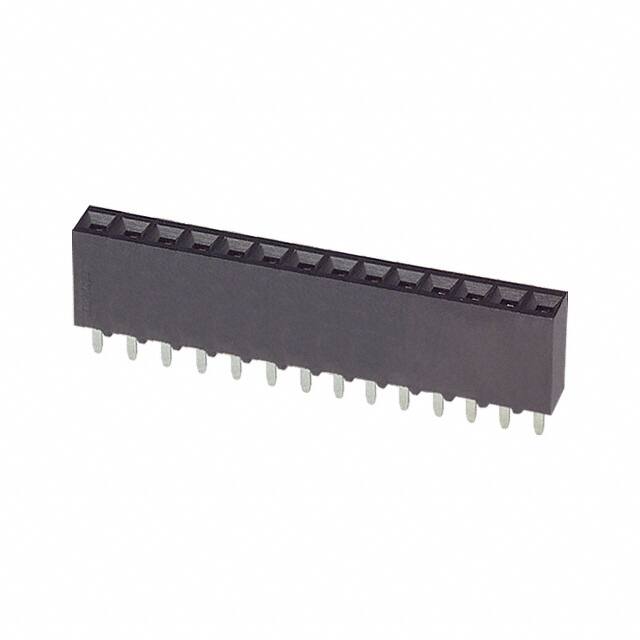

1-534237-2

Specifications

Filter Feature

NO

Ambalaj

Tube

Contact Finish Thickness Mating

30.0μin 0.76μm

Housing Material

Polyester

Fastening Type

Push-Pull

Mixed Contacts

NO

Akım Değeri

2A

Fabrika Tedarik Süresi

14 Weeks

Connector Type

Receptacle

Flammability Rating

UL94 V-0

Rated Current Signal

2A

Contact Shape

Square

Number Of Conductors

ONE

Plating Thickness

30μin

Pozisyon Sayısı

14

Kılıf / Paket

SIP

Row Spacing

2.54 mm

Pcb Thickness

2.4mm

Kurşunsuz Kodu

no

Çalışma Sıcaklığı

-65°C~125°C

Style

Board to Board or Cable

Elv

Non-Compliant

Contact Finish Mating

Gold

Operating Supply Voltage

333V

HTS Kodu

8536.69.40.40

Seri

AMPMODU Mod IV

Nominal Gerilim

750V

Number Of Positions Loaded

All

Yayın Yılı

2011

Contact Current Rating

2A

Montaj Tipi

Through Hole

Contact Finish Post

Tin-Lead

Additional Feature

TOP ENTRY

High Temperature Compatible

No

Orientation

Vertical

Durability

200 Cycles

Pcb Contact Pattern

RECTANGULAR

Number Of Pcb Rows

1

Iec Conformance

NO

Pcb Mount Retention

Without
