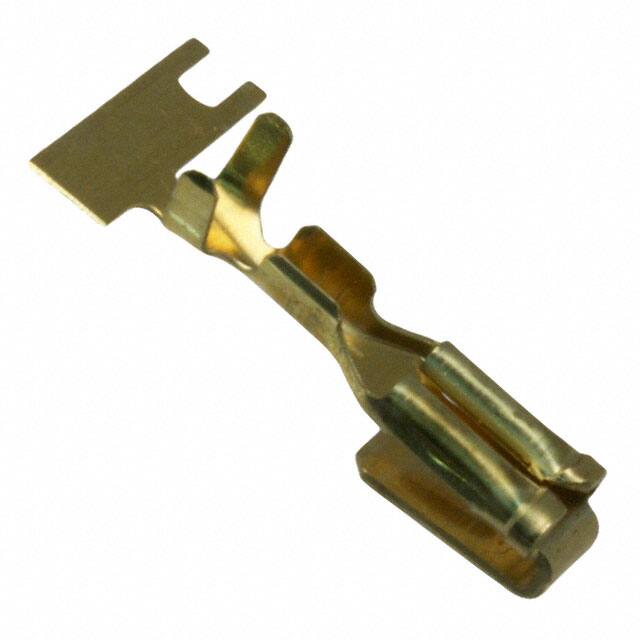

1217083-1

Specifications

Uzunluk

15.24mm

Montaj Tipi

Free Hanging (In-Line)

Wire Gauge Max

18 AWG

Wire Gauge Min

22 AWG

ECCN Kodu

EAR99

Terminal And Terminal Block Type

PUSH-ON TERMINAL

HTS Kodu

8536.90.40.00

RoHS

Details

Tab Thickness

0.018 x 0.020 0.46mmx0.51mm / 0.020 0.51mm

Wire Size

22 to 18, 22 AWG

Parça Durumu

Active

Tab Size

1.422 mm²

Terminal

Crimp

Nem Hassasiyeti (MSL)

1 (Unlimited)

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Contact Plating

Tin

Terminal Stili

Crimp

Body Material

Brass

Fabrika Paket Adedi

4000

Elv

Compliant

Contact Materials

Brass

Studtab Size

2.79 mm

Gender

Female and Male

Wirecable Type

Discrete

Tradename

FASTON

Mating Tab Width

2.794mm

Ürün Tipi

Terminals

Length Overall

0.600 15.24mm

Length Tab

0.250 6.35mm

Wire Gauge

18-22 AWG

Insulated Wire Support

Yes

Kurşunsuz

Not Applicable

Insulation Materials

Not Insulated

Fabrika Tedarik Süresi

10 Weeks

Montaj Stili

Push In

Width Tab

0.110 2.79mm

Insulation Diameter

0.080 ~ 0.120 (2.03mm ~ 3.05mm)

Ambalaj

Tape & Reel (TR)

Sealable

No

RoHS Durumu

RoHS Compliant
