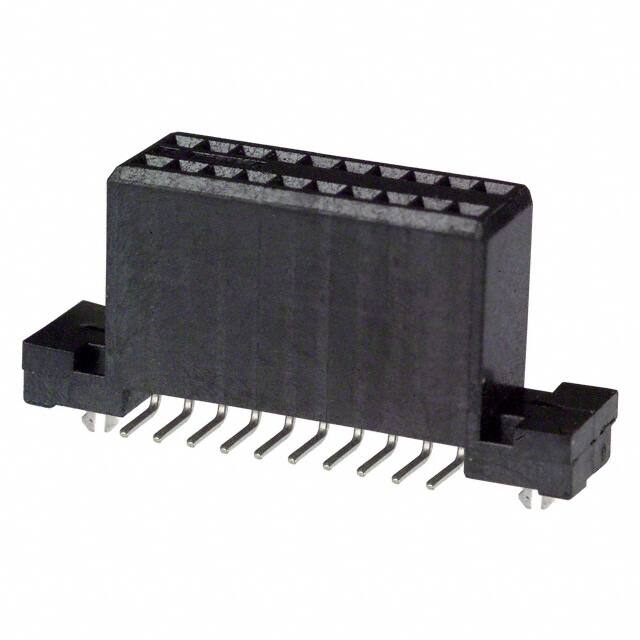

104550-2

Specifications

Total Number Of Contacts

20

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Flammability Rating

UL94 V-0

Connector Type

Receptacle

Insertion Forcemax

1.39 N

Montaj

Surface Mount

Row Spacing Mating

0.100 (2.54mm)

Style

Board to Board

Contact Finish Thickness Mating

30.0μin 0.76μm

Iec Conformance

NO

Fastening Type

Push-Pull

Contact Resistance

15mOhm

Nominal Gerilim

30VAC

Pitch Mating

0.050 1.27mm

Insulation Height

0.370 9.40mm

Housing Color

Black

Terminal

Solder

Pozisyon Sayısı

20

JESD-609 Kodu

e0

Kurşunsuz

Contains Lead

Orientation

Straight

Reliability

COMMERCIAL

Yayın Yılı

2005

Number Of Conductors

ONE

Ul Flammability Code

94V-0

Mil Conformance

NO

Rated Current Signal

3.6A

Polarization Key

POLARIZED HOUSING

Filter Feature

NO

RoHS Durumu

Non-RoHS Compliant

Parça Durumu

Active

Insulation Materials

Polyphthalamide (PPA)

Material Flammability Rating

UL94 V-0

Contact Finish Post

Tin-Lead

Body Breadth

0.198 inch

Yükseklik

9.398mm

Insulation Resistance

5GOhm

Montaj Tipi

Surface Mount

Özellikler

Board Lock

Contact Finish Mating

Gold
