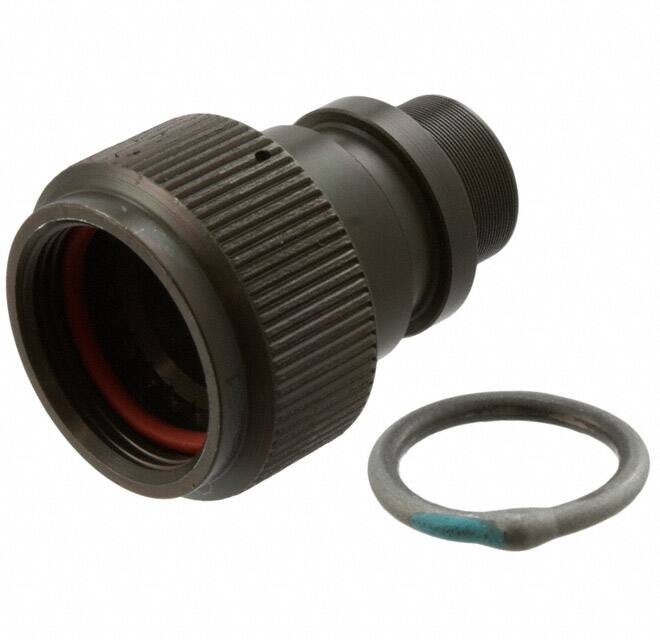

TXR40AB00-1206AI

Specifications

For Use With

MIL-C-38999, Series III & IV Class C,F,K,W & D38999/20/24/26/40/46/47 Circular Connectors

Empty Shell

NO

Renk

Olive Drab

Thread Size

M18x1

Min. Çalışma Sıcaklığı

-65°C

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Parça Durumu

Active

Wirecable Diameter

7.6 mm

Contact Finish Mating

NOT SPECIFIED

Includes

4 pcs - 1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring

Fabrika Tedarik Süresi

14 Weeks

Elv

Non-Compliant

Shell Size Insert

13 C

Filter Feature

NO

Diameter Outside

0.965 (24.50mm)

Body Material

Aluminium

HTS Kodu

8536.69.80.00

Kurşunsuz

Not Applicable

Military Standard

MIL-DTL-81511

Özellikler

Tinel Lock

ECCN Kodu

EAR99

Cable Exit

180°

Plating

Cadmium

Mixed Contacts

NO

Material

Aluminum Alloy

Connector Shell Size

13

Option

GENERAL PURPOSE

REACH Uyumluluk Kodu

not_compliant

Reach Svhc

Unknown

Shielding

Shielded

Nem Hassasiyeti (MSL)

Not Applicable

Seri

TXR

Din Conformance

NO

Mil Conformance

NO

Ingress Protection

Environment Resistant

Yayın Yılı

2002

Iec Conformance

NO

Tip

Backshell, Heat Shrink Adapter

Maks. Çalışma Sıcaklığı

175°C

Kılıf / Paket

Aluminum
