TE Connectivity Aerospace, Defense and Marine

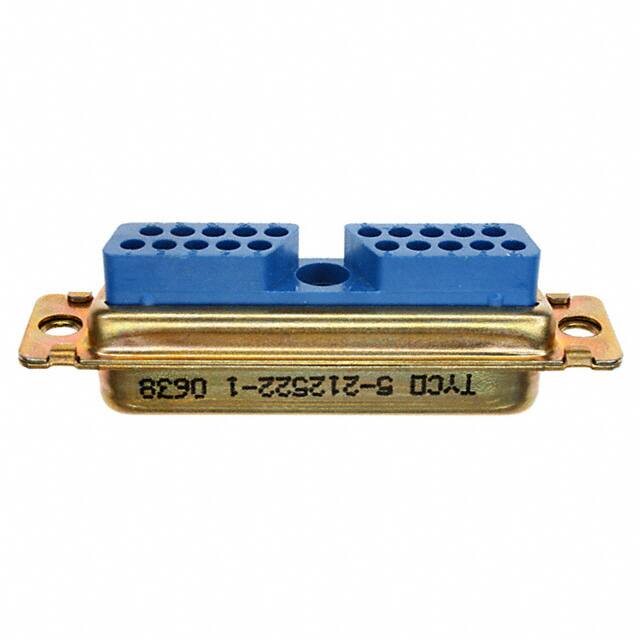

5-212522-1
D-Sub Connector Housings
In StockRoHS: Compliant
Volume pricing
- 1+ pcs$21.09
- 10+ pcs$19.90
- 100+ pcs$18.77
- 500+ pcs$17.71
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Sealable
- No
- Number Of Contacts
- 21
- Termination Type
- CRIMP
- Dielectric Material
- Polyester, Glass Filled
- ECCN Kodu
- EAR99
- Operating Temperature Min
- -55°C
- Kurşunsuz Kodu
- yes
- Insulation Materials
- GLASS FILLED POLYESTER
- Filter Feature
- NO
- Parça Durumu
- Active
- Shell Material Finish
- Steel, Yellow Chromate Plated Zinc
- Plating
- Chromate, Zinc
- Elv
- Compliant
- Montaj
- Free Hanging
- Din Conformance
- NO
- Seri
- AMPLIMITE 109
- Body Depth
- 0.414 inch
- Montaj Tipi
- Free Hanging (In-Line)
- Akım Değeri
- 7.5A
- Reliability
- COMMERCIAL
- Nem Hassasiyeti (MSL)
- Not Applicable
- Connector Style
- D-Sub, Combo
- Fabrika Tedarik Süresi
- 10 Weeks
- Option
- GENERAL PURPOSE
- Contact Type
- Signal and Coax or Power
- Contact Style
- Power
- Pozisyon Sayısı
- 21 (20 + 1 Coax or Power)
- Hole Diameter
- 3.048 mm
- Note
- Contacts Not Included
- Shell Finish Thickness
- 200μin 5.08μm
- HTS Kodu
- 8536.69.40.30
- Body Breadth
- 0.494 inch
- Connector Type
- Plug for Male Contacts
- Sıra Sayısı
- 2
- Empty Shell
- YES
- Flange Feature
- Housing/Shell (Unthreaded)
- Kurşunsuz
- Lead Free
- RoHS Durumu
- RoHS Compliant
- Iec Conformance
- NO
- Mil Conformance
- NO
