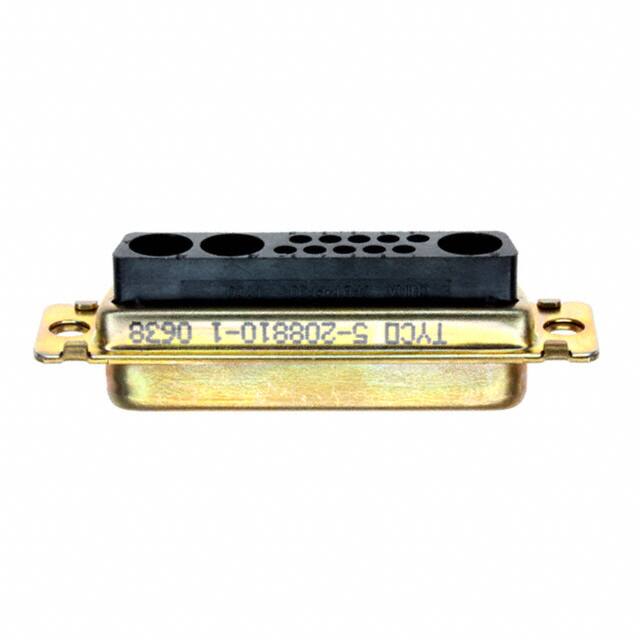

5-208810-1

Specifications

Connector Style

D-Sub, Combo

Din Conformance

NO

Parça Durumu

Obsolete

Kurşunsuz Kodu

yes

Max Voltage Rating Ac

600V

Sıra Sayısı

2

Pozisyon Sayısı

13 (10 + 3 Coax or Power)

Dielectric Material

Polyester, Glass Filled

Hole Diameter

3.05 mm

Seri

AMPLIMITE 109

Depth

16.35mm

Empty Shell

YES

Filter Feature

NO

Contact Arrangement

S10C3

Connector Type

Plug for Male Contacts

Shell Finish Thickness

200μin 5.08μm

RoHS Durumu

RoHS Compliant

Gender

Male

Iec Conformance

NO

Total Number Of Contacts

13

Shell Material Finish

Steel, Yellow Chromate Plated Zinc

Plating

Zinc

Reference Standard

UL, CSA

Note

Contacts Not Included

ECCN Kodu

EAR99

Kurşunsuz

Lead Free

Nem Hassasiyeti (MSL)

Not Applicable

Shell Size Connector Layout

3 DB B - 13C3 13W3

Orientation

Straight

Uzunluk

53.03mm

HTS Kodu

8536.69.40.30

Fabrika Tedarik Süresi

6 Weeks

Mil Conformance

NO

Mixed Contacts

YES

Renk

Black

Radyasyon Dayanımı

No

Flange Feature

Housing/Shell (Unthreaded)

Min. Çalışma Sıcaklığı

-55°C

Option

GENERAL PURPOSE

Montaj Tipi

Free Hanging (In-Line)
