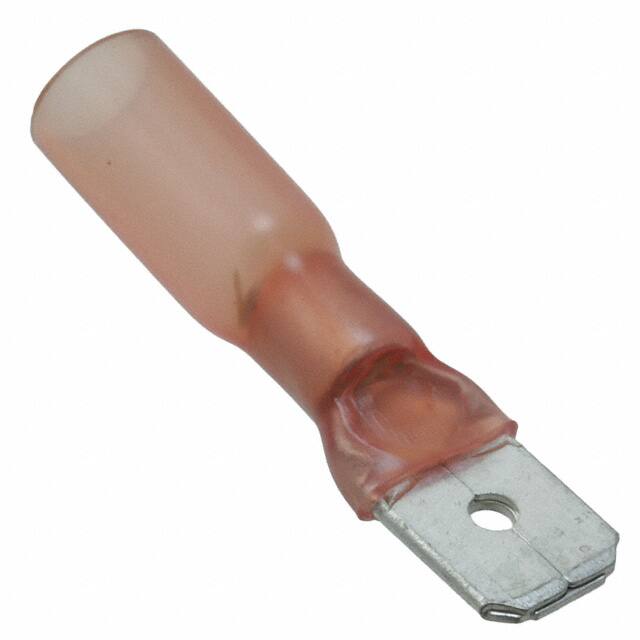

514711-000

Specifications

Terminal

Crimp

Ambalaj

Bulk

Yayın Yılı

2004

Wire Gauge Max

22 AWG

RoHS Durumu

RoHS Compliant

Length Overall

1.260 32.00mm

Min. Çalışma Sıcaklığı

-55°C

Orientation

Straight

Insulator Material

Nylon (Polyamide)

Contact Materials

Brass

Uzunluk

32.004mm

Insulation Materials

Polyamide

Gender

Male

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Free Hanging (In-Line)

HTS Kodu

8536.90.40.00

Maks. Çalışma Sıcaklığı

125°C

Wire Gauge Min

18 AWG

Mating Tab Width

6.35mm

Montaj

Free Hanging

Insulated Wire Support

Yes

Wirecable Gauge

22 AWG

Wirecable Diameter

3.81 mm

Insulation Diameter

4 mm

Terminal Type

Standard

Wire Gauge

18-22 AWG

Insulation

Non-Mating End Heat Shrink

Fabrika Tedarik Süresi

4 Weeks

Terminal And Terminal Block Type

TAB TERMINAL

Parça Durumu

Active

Lifecycle Status

ACTIVE (Last Updated: 3 days ago)

Width Tab

0.250 6.35mm

ECCN Kodu

EAR99

Tab Thickness

0.030 0.76mm

Terminal Material

Brass

Contact Finish

Tin

Renk

Red

Kurşunsuz Kodu

yes

Seri

Dura-Seal
