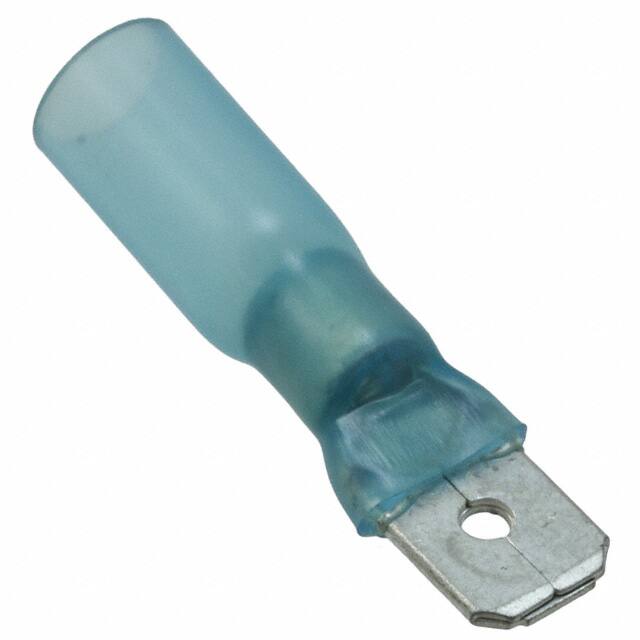

467777-000

Specifications

Kurşunsuz Kodu

yes

Maks. Çalışma Sıcaklığı

125°C

Renk

Blue

Terminal Stili

Crimp

Insulation

Non-Mating End Heat Shrink

Wire Gauge

14-16 AWG

Terminal Type

Standard

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Contact Plating

Tin

Gender

Male

Width Tab

0.250 6.35mm

Wire Gauge Max

16 AWG

Wirecable Diameter

4.45 mm

Terminal

Crimp

Contact Materials

Brass

Wire Gauge Min

14 AWG

Insulation Materials

Polyamide

Radyasyon Dayanımı

No

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

5 Weeks

Terminal Material

Brass

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Terminal And Terminal Block Type

TAB TERMINAL

Orientation

Straight

Ambalaj

Bulk

Mating Tab Width

6.35mm

Montaj

Free Hanging

Montaj Tipi

Free Hanging (In-Line)

Insulation Diameter

4.6 mm

Seri

Dura-Seal

Insulated Wire Support

Yes

Uzunluk

33mm

Min. Çalışma Sıcaklığı

-55°C

Length Overall

1.300 33.02mm

Contact Finish

Tin

Insulator Material

Nylon (Polyamide)

Yayın Yılı

2004

Tab Thickness

0.030 0.76mm
