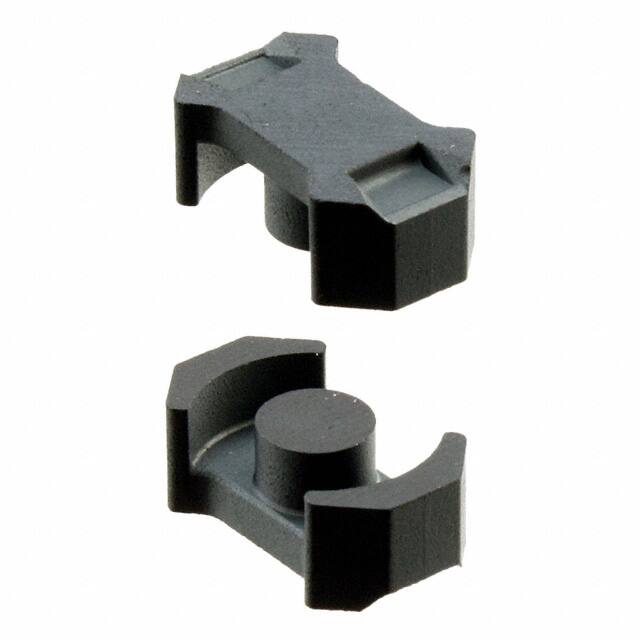

B65803P0000R049

Specifications

Minimum Core Cross Section Amin Mm2

11.3

Effective Permeability E

900

Effective Area Ae Mm2

14.5

Inductance Factor Al

950nH

Core Type

RM

Uzunluk

11.00mm

Yükseklik

3.90mm

Seri

B65803P

Finish

Uncoated

Effective Magnetic Volume Ve Mm3

251

Effective Length Le Mm

17.3

Genişlik

4.60mm

Fabrika Tedarik Süresi

27 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material

N49

Initial Permeability I

1500

Core Factor Ia Mm1

1.2

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Gap

Ungapped

Tolerans

-20% +30%

Tedarikçi Cihaz Paketi

RM 4 LP
