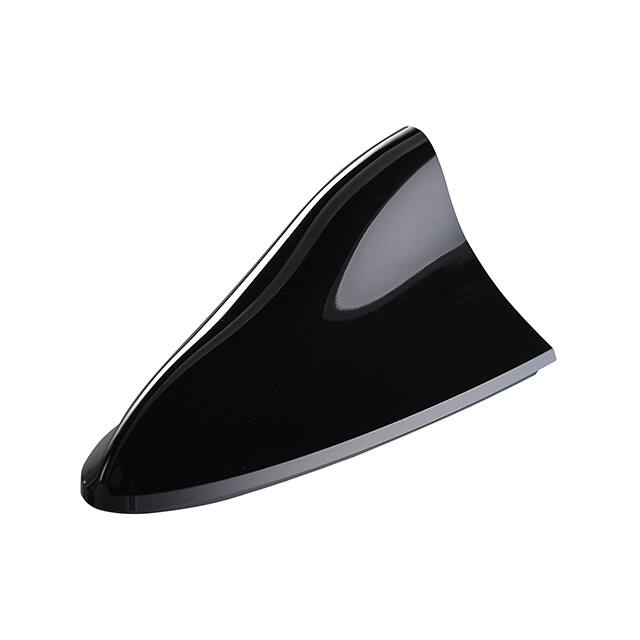

MA1060.A.LBCT.001

Specifications

Antenna Type

Module

Frequency Range

698MHz~960MHz 1.71GHz~2.17GHz 2.3GHz~2.7GHz 2.4GHz~5.8GHz

Nem Hassasiyeti (MSL)

Not Applicable

Number Of Bands

15

Rf Familystandard

Cellular, Navigation, WiFi

Frequency Centerband

1.07MHz 98MHz 761MHz 859MHz 920MHz 1.584GHz 1.602GHz 1.795GHz 1.92GHz 2.045GHz 2.45GHz 2.495GHz 5.5GHz

Fabrika Tedarik Süresi

8 Weeks

Parça Durumu

Active

Height Max

2.835 72.00mm

RoHS Durumu

ROHS3 Compliant

Terminal

SMA Male

Applications

2G, 3G, 4G, Beidou, Galileo, GLONASS, GPS, LTE, Wi-Fi

Özellikler

Cable - 300mm

Gain

-3.11dBi, -3.16dBi, -4.69dBi, 1.45dBi, 1.92dBi, 2.88dBi, 3.1dBi, 3.32dBi, 3.52dBi, 4.36dBi, 5.62dBi, 7.22dBi

Frequency Group

Wide B
