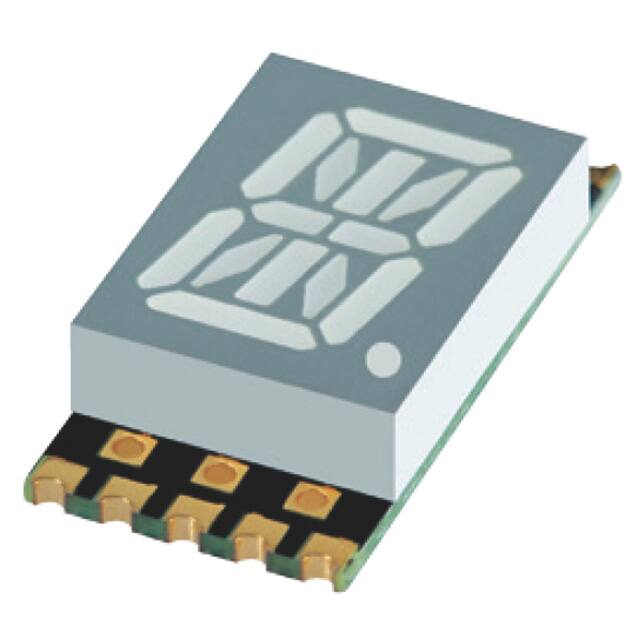

XZFAVG10A

Specifications

Wavelength Peak

574nm

Yükseklik

18.9992mm

Boyut / Ölçü

0.748 Hx0.366W x 0.148 D 19.00mmx9.30mmx3.75mm

Ambalaj

Tape & Reel (TR)

RoHS Durumu

ROHS3 Compliant

Operating Temperature Min

-40°C

Operating Temperature Max

85°C

Kurşunsuz Kodu

yes

Common Pin

Common Anode

Fabrika Tedarik Süresi

6 Weeks

Digitalpha Size

0.40 10.16mm

Fonksiyon Sayısı

1

Luminous Intensity

3 mcd

Nem Hassasiyeti (MSL)

2A (4 Weeks)

Voltage Forward Vf Typ

2V

Yayın Yılı

2014

Display Type

14-Segment, Alphanumeric

Current Test

10mA

Renk

Green

ECCN Kodu

EAR99

Forward Currentmax

0.03A

Parça Durumu

Active

Number Of Characters

1

Kılıf / Paket

16-SMD, No Lead

Power Dissipation Max

75mW
